E-Stop Operator, Ø30mm, Non-Illuminated Push-Pull Ø60mm Jumbo Mushroom, Yellow, Normal Duty, 600VAC Voltage Class, NEMA 4, IP65, CE Certification, CSW30 Series
WEG is a global manufacturer of electric motors, variable frequency drives, soft starters and controls. The controls line includes contactors, starters, circuit breakers and much more.
WEG Electric Corp. USA, located in Duluth, GA, has a number of distribution centers including one right here in the Chicago area.
Series Features Include:
NEMA 4, IP65 Rated
Fits 1-13/64 (30.5mm) hole without notch required
Contact blocks snap-in (fast & easy assembly)
Up to 8 contact blocks for non-illuminated operators and up to 4 contact blocks for illuminated operators
LED lamps with built-in leakage protection
Security features Standard: Screw tightening mounting bracket, Optional: Rubber boots for an additional layer of protection from corrosive chemicals from hands on operations or wash-down environments

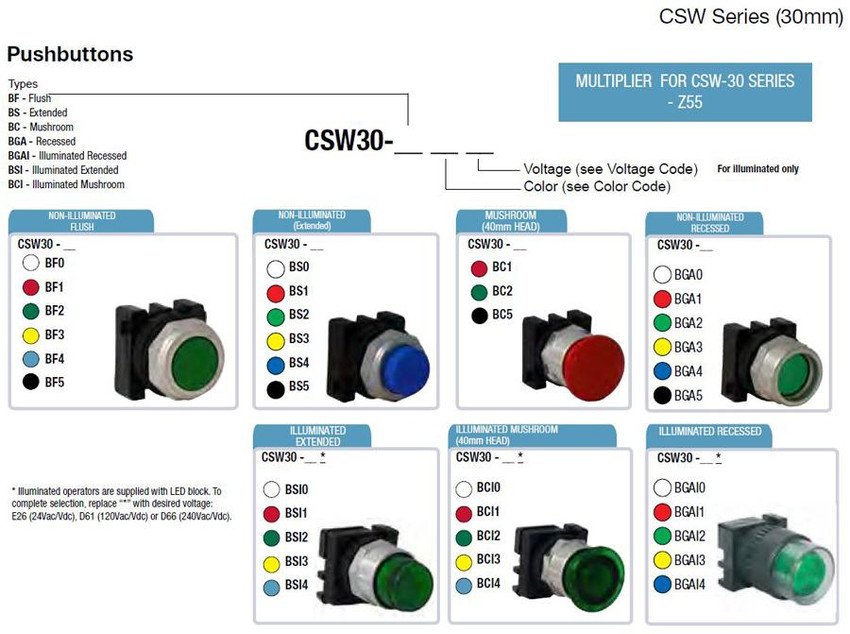

Pushbutton Operator, Ø30mm, Non-Illuminated Ø60mm Jumbo Mushroom, Green, Normal Duty, 600VAC Voltage Class, NEMA 4, IP66, CE Cerification, CSW30 Series
Pushbutton Operator, Ø30mm, Illuminated Ø40mm Mushroom, Blue, 480VAC/DC LED Lamp Voltage, Normal Duty, 600VAC Voltage Class, NEMA 4, IP66, CE Cerification, CSW30 Series
Pushbutton Operator, Ø30mm, Illuminated Twist Release, Red, 24VAC/DC LED Lamp Voltage, Normal Duty, 600VAC Voltage Class, NEMA 4, IP66, CE Certification, CSW30 Series
Pushbutton Operator, Ø30mm, Illuminated Ø40mm Mushroom, White, 120VAC/DC LED Lamp Voltage, Normal Duty, 600VAC Voltage Class, NEMA 4, IP66, CE Cerification, CSW30 Series
Pushbutton Operator, Ø30mm, Illuminated Extended, Amber, 480VAC/DC LED Lamp Voltage, Normal Duty, 600VAC Voltage Class, NEMA 4, IP66, CE Cerification, CSW30 Series
Pushbutton Operator, Ø30mm, Illuminated Extended, Amber, 24VAC/DC LED Lamp Voltage, Normal Duty, 600VAC Voltage Class, NEMA 4, IP66, CE Cerification, CSW30 Series
