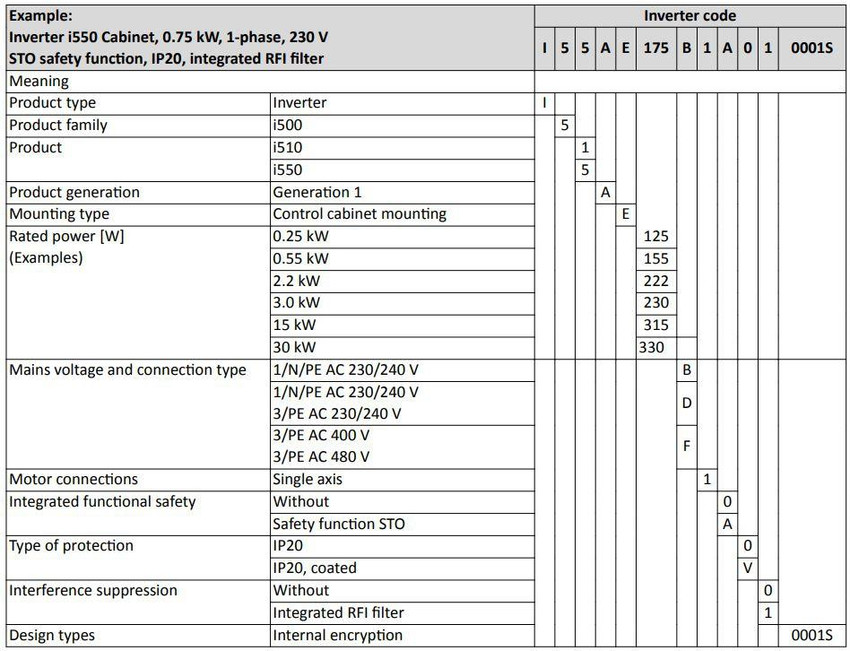

I55AE125A10V01000S

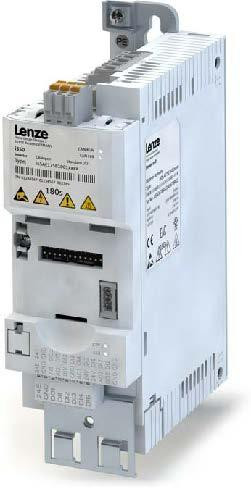

The i500 series from Lenze is available in i510 and i550 models. This is the i550 model. Please note that the keypad interface module is sold separately (I5MADK0000000S).

The i550 series is ideal for more sophisticated speed/torque applications up to 150 hp (for simple, lower hp applications please see the i510 series).

The i500 already conforms to future standards in accordance with EN 50598-2 efficiency classes (IE). The space saving design and interface options give you an extremely fast set-up.

This modular systems gives you a wide variety of product configurations and is recommended for pumps and fans, conveyors, formers, winders, traveling drives, tools and hoist drives.

Three set-up methods are available using the keypad, the smart keypad-app or EASY starter.

Learn more about Lenze's i500 Series here!

or see how easy it is to set your parameter with your smartphone here!

Series Features Include:

• Space saving design: 2.36" wide, 5.12" deep up to 3hp, fits in a 6" deep cabinet up to 15hp
• Scalable functionality
• Ideal for sophisticated speed/torque applications up to 150 hp
• Protection Rating: IP20
• Keypad interface module is sold separately (I5MADK0000000S)
• Zero-clearance mounting (bookshelfing the drive/mounting side by side) with no derating!
• Modular system allows for various product configurations
• Ideal for pumps and fans, conveyors, formers, winders, tool and hoist drives
• 3 set up methods; keypad, smart keypad-app, EASY starter
• i550 available with standard I/O (0S) or Application I/O (1S)
• 200% overload current for short term transient loads, 150% for 60 seconds
• DC-injection braking
• V/f controls (linear, quadratic, VFCeco)
• Sensorless vector control
• i550: has vector control with feedback
• i550: Dynamic braking through brake resistance
• i550: STO - safe torque off
• i550: CANopen, EtherCAT, EtherNet, I/P, Modbus, PROFIBUS, PROFINET
• i550: Internal 24VDC, 100mA supply to power your devices
• i550 supports both PNP/Active High and NPN/Active Low logic
