Carlo Gavazzi
DPC01DM23400HZ
Monitoring Relay, TRMS 3P Over/Under, 50-400Hz, 2xSPDT, 208--240VAC, DIN Rail Mount
$183.20
DPC01DM23
Alt: Minimum Order 3 Pieces, Price per Piece
$183.20
Monitoring Relay, TRMS 3P Over/Under, 50-60Hz, 2xSPDT, 208-240VAC, DIN Rail Mount
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 3 units
Description
Monitoring Relay, TRMS 3P Over/Under, 50-60Hz, 2xSPDT, 208-240VAC, DIN-Rail Mount
Specifications
Amp Rating
See Spec
Monitoring Relay Type
Phase Monitoring
Phase
Three Phase
Poles
SPDT
All - Voltage
208/240VAC
Warranty
1 Year
Alternate Part Number
Minimum Order 3 Pieces, Price per Piece
Weight
0.5
Features Include:
- TRMS 3-phase over and under voltage, phase sequence, phase loss, asymmetry and tolerance monitoring relay
- Detect when all 3 phases are present and have the correct sequence
- Detect if all the 3-phase-phase or phase-neutral voltages are within the set limits
- Detect if asymmetry and tolerance are within the set value
- Separately adjustable setpoints
- Separately adjustable delay functions (0.1 to 30 s)
- Output: 2 x 8 A relay SPDT NE
- For mounting on DIN-rail in accordance with DIN/EN 50 022 (DPC01) or plug-in module (PPC01)

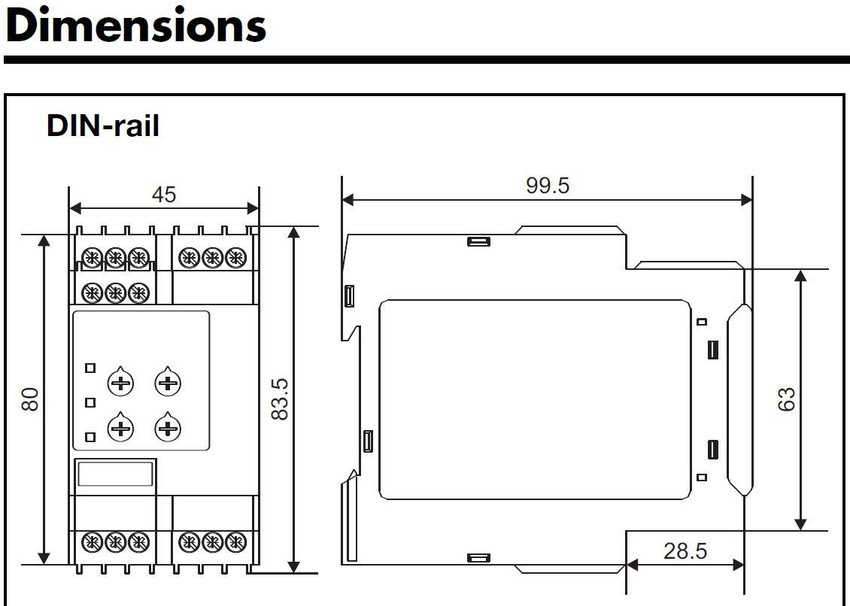

- 45 mm Euronorm housing (DPC01) or 36 mm plug-in module (PPC01)
- LED indication for relays, alarm and power supply ON
