DPB02CM48
Alt: Minimum Order 5 Pieces, Price per Piece
$135.20

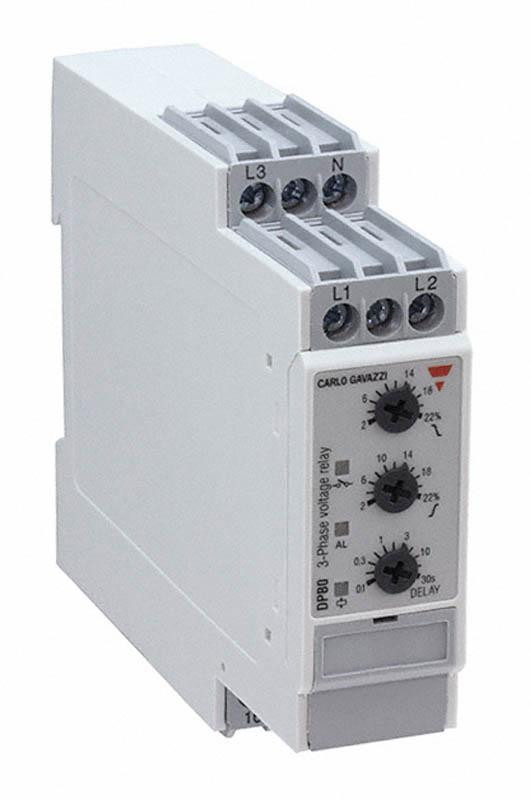

Monitoring Relay, 3-Phase Asymmentry, 5A, SPDT, 380-480VAC, DIN Rail Mount
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 5 units
Description
Monitoring Relay, 3-Phase Asymmentry, 5A, SPDT, 380-480VAC, DIN-Rail Mount
Specifications
Alternate Part Number
Minimum Order 5 Pieces, Price per Piece
Amp Rating
See Spec
Monitoring Relay Type
See Spec
Phase
Three Phase
Poles
SPDT
All - Voltage
460/480VAC
Warranty
1 Year
Weight
0.5
Features Include:
- TRMS 3-phase phase sequence, phase loss and asymmetry monitoring relays
- Detect when all 3 phases are present and have the correct sequence
- Detect if asymmetry level is below the set value
- Measure their own power supply
- Selection of measuring range by DIP-switches
- Adjustable asymmetry on relative scale
- Adjustable delay function (0.1 to 30 s)
- Output: 8 A relay SPDT N.E.
- For mounting on DIN-rail in accordance with DIN/EN 50 022 (DPB02) or plug-in module (PPB02)
- 22.5 mm Euronorm housing (DPB02) or 36 mm plug-in module (PPB02)
- LED indication for relay, alarm and power supply ON
