Product image is representative only, please verify specifications.

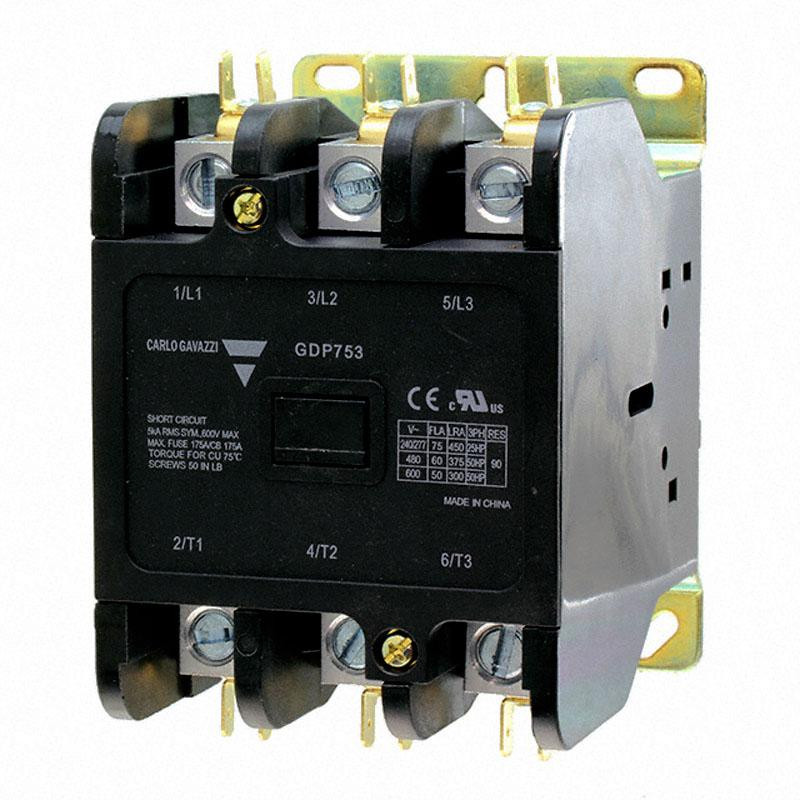

GDP753L220V
Alt: Minimum Order 5 Pieces, Price per Piece
$172.80
DP (Definite Purpose) Contactor, 3 Pole, 75A, 220VAC, Lug Terminal, No Shunt, UL/RoHS
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 5 units
Description
DP Contactor, 3 Pole, 75A, 220VAC, Lug Terminal, No Shunt, UL/RoHS
Features Include:
- Definite purpose contactor
- Multiple 0.25” fast-on terminals are standard on control and load terminals
- Operating temperature up to 104ºF (40ºC), and with de-ratings up to 158ºF (70ºC)
- Screw terminals are standard on all one pole, one pole with shunt and two pole models
- Lug terminals are standard on three pole models
- UL Recognized
- Storage Temperature: -25 - +55°C (-13 ~ 131°F)
- Relative Humidity: less than 50% @40°C, non-condensing
- Shock and Vibration: do not subject product to shock and vibration
- Pollution Degree: 2
- Altitude: ≤2000m
- Installation: ≤5° from vertical plane
