01313
Alt: 1313
$61.49
Donut Current Transformer, 50:1 Turns Ratio, 250A Primary, 5A Secondary, 8% Accuracy/2VA Burden
- Weight:
- 2.00 LBS
- Minimum Purchase:
- 1 unit
Description

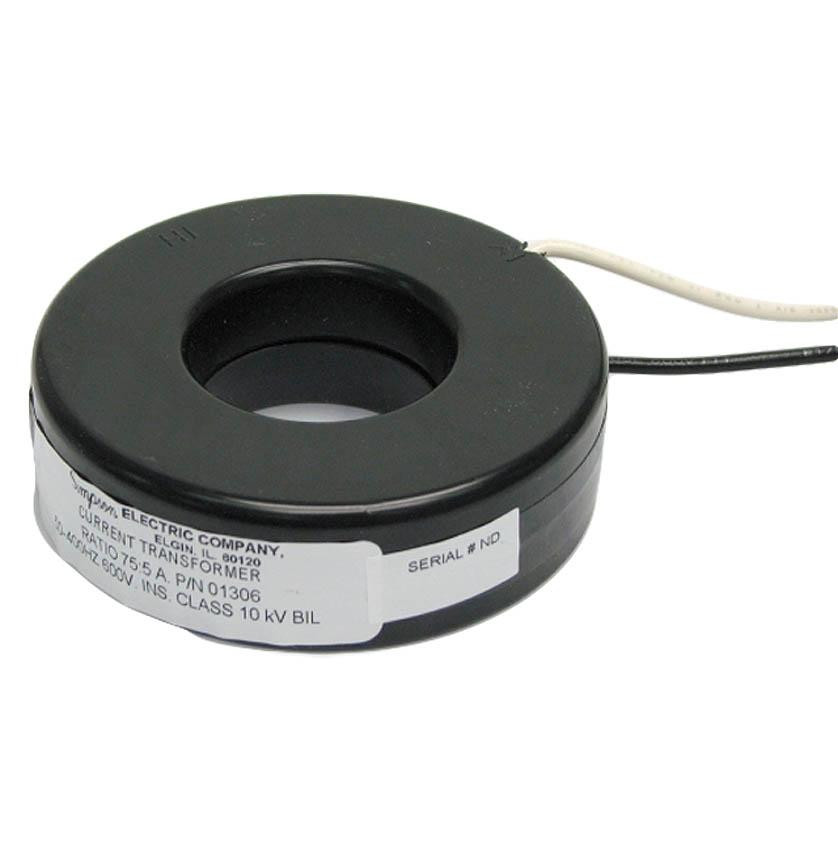

These donut current transformers are molded from impact and abrasive resistance black nylon for rugged construction.
As the distance between the donut current transformer and the meter increases the signal intensity falls.
The maximum distance of these current transformers is figured by the VA burden as well as the VA burden of the meter being used.
Features:
- Meets A.S.A. C57.13 standard
- Molded from impact and abrasive resistance black nylon for rugged construction
- UL File # E93779
- Use with meters
- Primary turn ratio formula: Ka = Kn x Nn / Na
