01306
Alt: 1306
$64.75

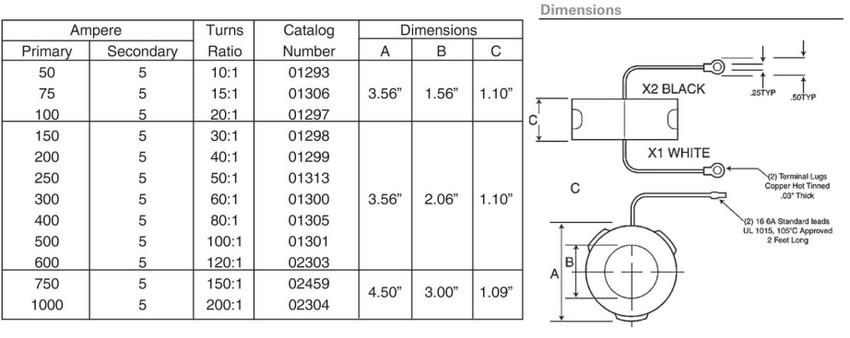

Donut Current Transformer, 15:1 Turns Ratio, 75A Primary, 5A Secondary, 2% Accuracy/2VA Burden
- Weight:
- 2.25 LBS
- Minimum Purchase:
- 1 unit
Description
These donut current transformers are molded from impact and abrasive resistance black nylon for rugged construction.
As the distance between the donut current transformer and the meter increases the signal intensity falls.
The maximum distance of these current transformers is figured by the VA burden as well as the VA burden of the meter being used.
Features:
- Meets A.S.A. C57.13 standard
- Molded from impact and abrasive resistance black nylon for rugged construction
- UL File # E93779
- Use with meters
- Primary turn ratio formula: Ka = Kn x Nn / Na
Need More Information?
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Leuze
50130658
Connection Cable, 250VAC/DC Max., 10m Black PUR, Connector 1: M12 Female 4-Pin A-Coded, Axial; Connection 2: Open End, IP65/67, NCNR
$31.00
Leuze
50130657

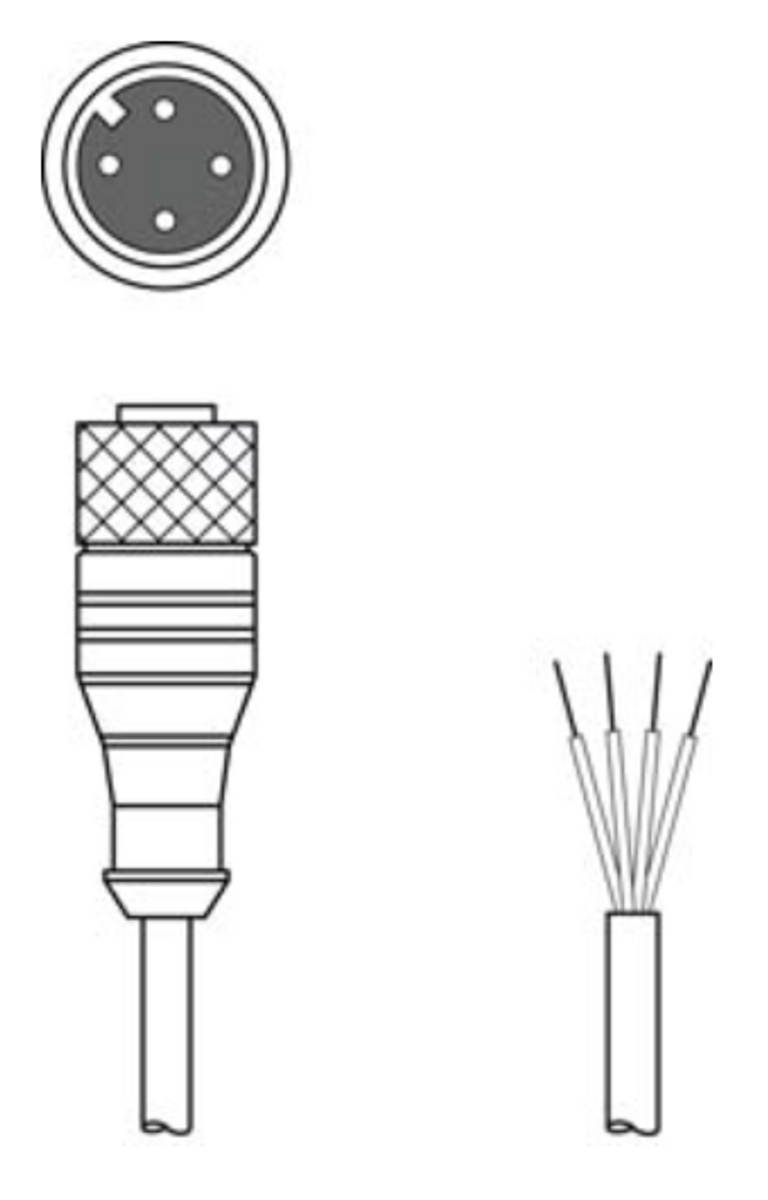

Connection Cable, 250VAC/DC Max., 5m Black PUR, Connection 1: M12 Female 4-Pin A-Coded Axial Connector; Connection 2: Open End, IP65/67, NCNR
