Autonics
TX4S-A4S
Digital Temp Control, 1/16 DIN, SSR Drive Output, LCD, 4 Digit, 100-240VAC, 50/60Hz, 2 Alarm + PV
$145.00
TX4S-B4R
Alt: TX4S Series
$156.00
Digital Temp Control, 1/16 DIN, Relay Output, LCD, 4 Digit, 100-240VAC, 50/60Hz, 2 Alarm+RS485
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description

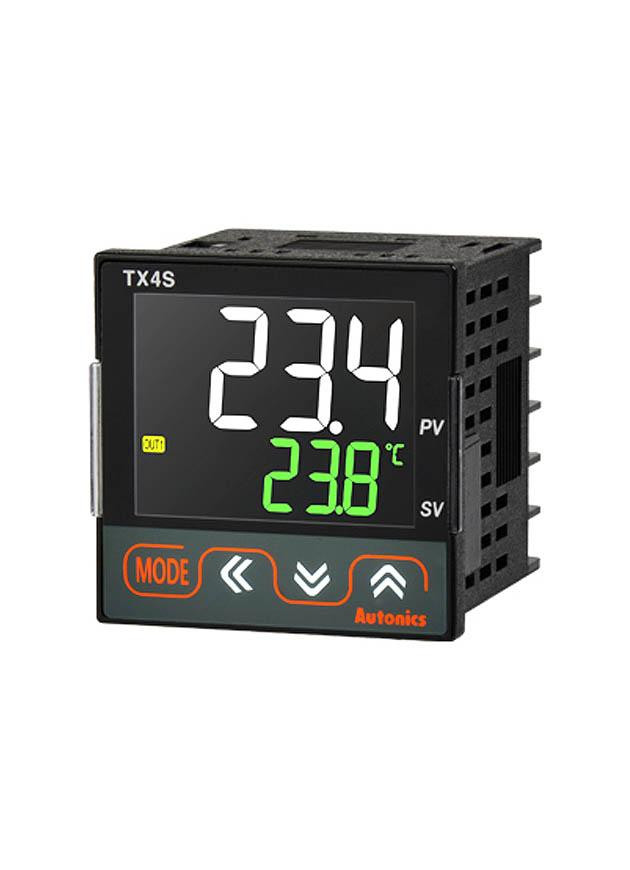

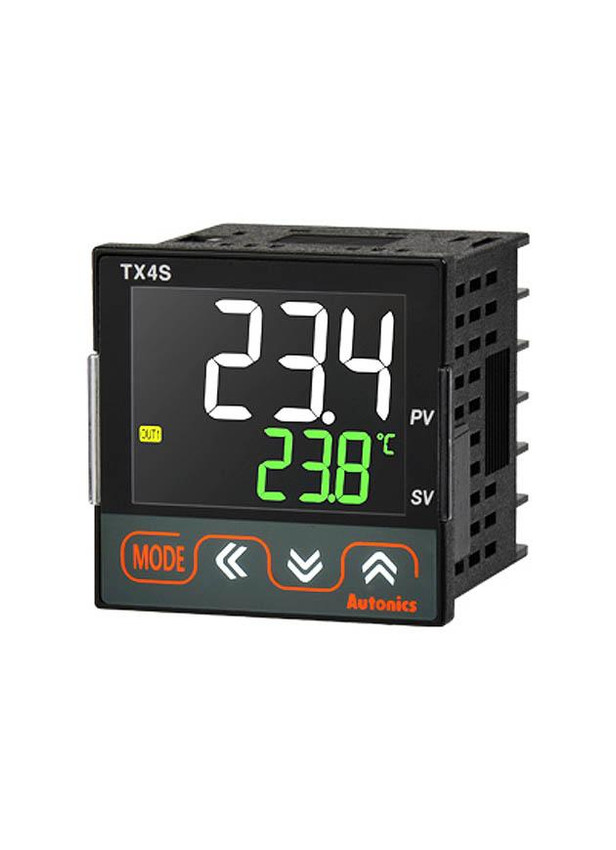

Our Autonics TX4S series is a low cost temperature controller that has an easy-to-read LCD display and a compact design with a depth of just 45mm!
This series features a 50ms high speed sampling rate and the 'C' version (suffix=C) allows you to select between current output and SSR drive output using the parameter settings.
The Autonics TX4S is a great temperature controller for applications with limited space!
Marshall Wolf Automation is your authorized Autonics distributor!
- 1/16th DIN (48x48mm)
- LCD display - very easy to read
- PID control
- 50ms high-speed sampling rate
Output options available:
- Alarm output 1 (TX4S-14)
- Alarm output 1, alarm output 2 (TX4S-24)
- Alarm output 1, alarm output 2, trans output (TX4S-A4)
- Alarm output 1, alarm output 2, RS485 communication output (TX4S-B4)
Control output options available:
- Relay output (suffix: R)
- SSR drive output (suffix: S)
- Selectable current output or SSR drive output (suffix: C)
