Simpson Electric
M245-1-2-14-0

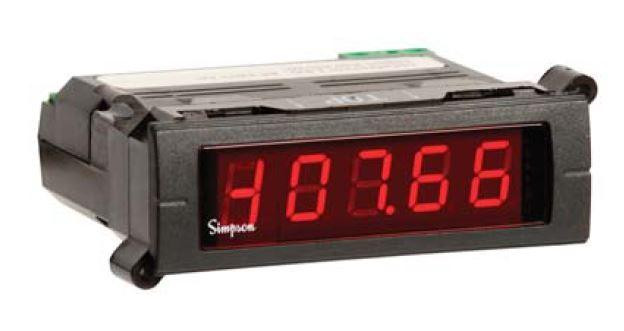

Digital Panel Meter, LCD, 9-32VDC, 200VDC, 4-1/2 Digital Negative Red Backlight LCD, Mini Max
$361.78
M245-1-2-74-0
Alt: M24512740
$389.92
Digital Panel Meter, LCD, 9-32VDC, 0-100VDC, 4-1/2 Digital Negative Red Backlight LCD, Mini Max
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Simpson Electric Company has been a leading manufacturer of panel meters and test instruments since 1927.
Simpson Electric products are proudly manufactured in the USA and they are HUBZone Certified.
Marshall Wolf Automation is your authorized distributor for the complete line of Simpson analog panel meters, digital panel meters and test & measurement products.
Specifications
Alternate Part Number
M24512740
Amp Rating
See Spec
Analog/Digital
Digital
Meter Type
Panel Meter
Series
M145/M245 Series
All - Voltage
See Spec or N/A
Warranty
1 Year
Weight
.5
Features Includes:
- 3/64 DIN Indicator
- Unique mounting bracket allows stacking of multiple units
- Screw terminal connectors for easy installation
- LCD: 3-1/2 or 4-1/2 digit, 0.5" high LCD display with optional negative image, bright red backlighting
- LED: 3-1/2 digit, 0.56" high display
- LED: 4-1/2 digit, 0.40" high display
- Limited range display scaling
Downloads
- Simpson Electric Mini-Max Meter Datasheet
- Simpson Electric M245 Mini-Max Digital Panel Meter AC TRMS Current Manual
- Simpson Electric M245 Mini-Max Digital Panel Meter AC TRMS Voltage Manual
- Simpson Electric M245 Mini-Max Digital Panel Meter DC Current Manual
- Simpson Electric M245 Mini-Max Digital Panel Meter DC Process Manual
