Simpson Electric
M235-2-0-11-0

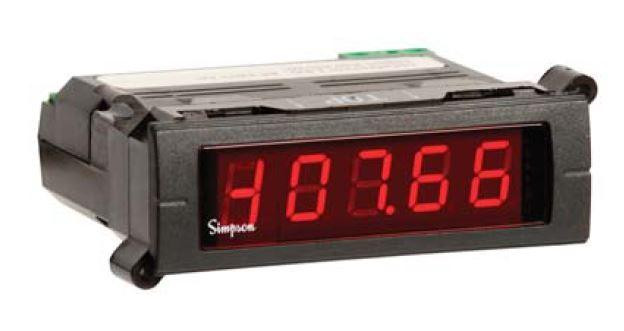

Digital Panel Meter, LED, 85-250VAC, 200DCmV, 3.5" Digit Red LED, Mini-Max
$289.06
**Tariff Update: Select Manufacturer Tariffs Will Begin on April 14th, 2025** Read the latest!
Available Now!
Available Now!
(1 in stock)
M235-0-0-11-0
Alt: M23500110
$172.83

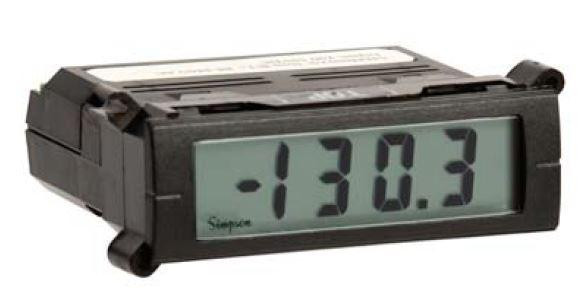

Digital Panel Meter, LCD, 85-250VAC, 200DCmV, 3.5" Digit LCD, Mini-Max
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Build Your Complete VFD Solution
Create a complete system with recommendations on AC drives and compatible components like motors, circuit breakers, and protection equipment.
Description
Digital Panel Meter, Mini-Max, 85-250ACV, 200DCmV, 3-1/2" Digit LCD,
Specifications
Alternate Part Number
M23500110
Amp Rating
See Spec
Analog/Digital
Digital
Meter Type
Panel Meter
Series
M135/M235 Series
All - Voltage
See Spec or N/A
Quantity
1
Warranty
1 Year
Weight
.5
Features Include:
- 3/64 DIN Indicator
- Unique mounting bracket allows stacking of multiple units
- Screw terminal connectors for easy installation
- LCD: 3-1/2 or 4-1/2 digit, 0.5" high LCD display with optional negative image, bright red backlighting
- LED: 3-1/2 digit, 0.56" high display
- LED: 4-1/2 digit, 0.40" high display
- Limited range display scaling
