M145-0-2-12-0
Alt: M14502120
$197.90

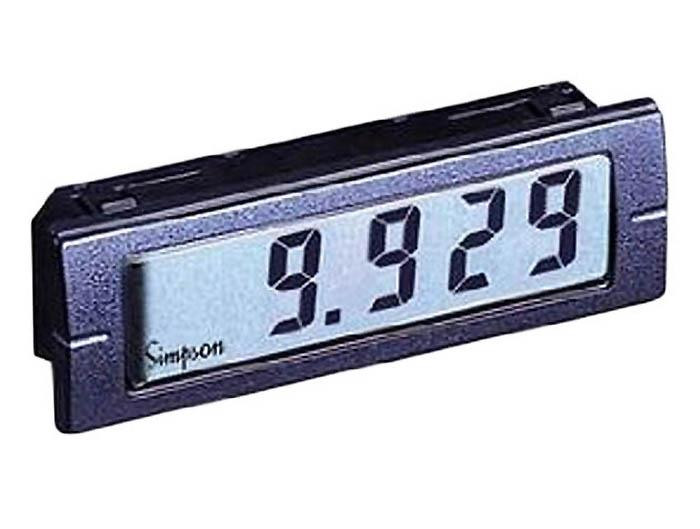

Digital Panel Meter, Mini, 4-1/2 Digit LCD, +9VDC, 2VDC Range
- Weight:
- 0.25 LBS
- Minimum Purchase:
- 1 unit
Description
Digital Panel Meter, Mini, 4-1/2 Digit LCD, +9DCV, 2DCV Range
Specifications
Alternate Part Number
M14502120
Amp Rating
See Spec
Analog/Digital
Digital
Meter Type
Panel Meter
Series
See Specs
All - Voltage
See Spec or N/A
Warranty
1 Year
Weight
.25
Features Include:
- Type: 7-segment LCD
- Height: 0.5" (12.7mm)
- Minimum Depth Indicator - Less than 1.25" (31.75mm) of Space Required Behind the Panel

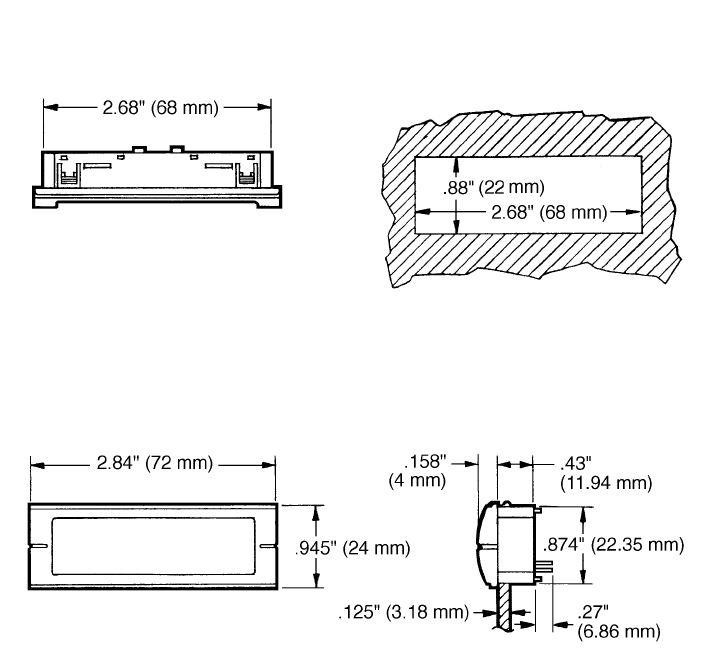

- Fits 3/64 DIN Cutout, 22mm x 68mm
- 4-1/2 Digit, 0.5" (12.7mm) High LCD
- User-Selectable Decimal Point
- Optional Negative Image, Bright Red Backlighting
- 12 Pin Mating Connector With 6" Lead Wires Included for Easy Installation
- Display Hold Standard on All Units
- Four Current Ranges: 200 A, 2mA, 20mA, 200mA
- Three Power Supply Alternatives: 5VDC, ±5VDC or
- 9VDC (With Low Battery Indication)
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
$197.90
$197.90
Simpson Electric
M145-1-0-14-1
Digital Panel Meter, Mini, 4-1/2 Digit LCD, Negative Red Backlight, +5VDC, 200VDC Range, 5VDC
$236.10
Simpson Electric
H345-2-12-0-0-0

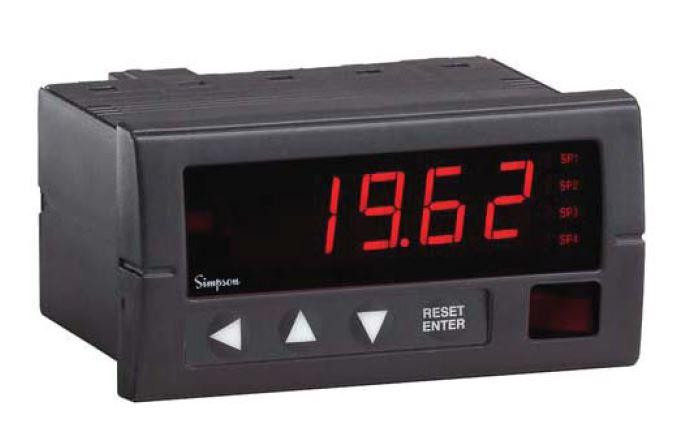

Digital Panel Meter/Controller, Hawk 3, 85-250VAC, 2VDC, 4-1/2 Digit, Red LED
