M145-0-0-11-0
Alt: M14500110
$179.91

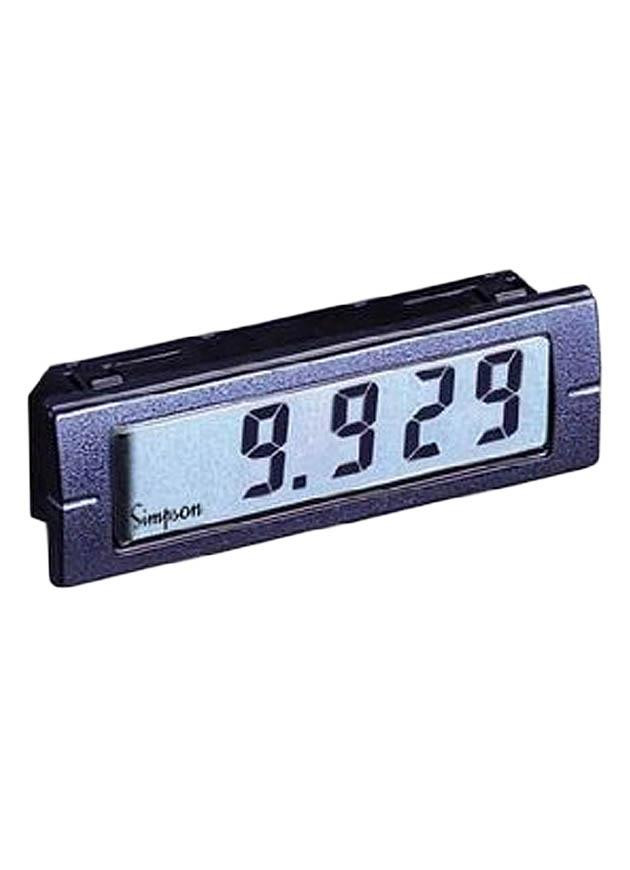

Digital Panel Meter, Mini, 4-1/2 Digit LCD, +5VDC, 200DCmV Range
- Weight:
- 0.25 LBS
- Minimum Purchase:
- 1 unit
Description
Digital Panel Meter, Mini, 4-1/2 Digit LCD, +5DCV, 200DCmV Range
Features Include:
- Type: 7-segment LCD
- Height: 0.5" (12.7mm)
- Minimum Depth Indicator - Less than 1.25" (31.75mm) of Space Required Behind the Panel
- Fits 3/64 DIN Cutout, 22mm x 68mm
- 4-1/2 Digit, 0.5" (12.7mm) High LCD
- User-Selectable Decimal Point
- Optional Negative Image, Bright Red Backlighting
- 12 Pin Mating Connector With 6" Lead Wires Included for Easy Installation
- Display Hold Standard on All Units
- Four Current Ranges: 200A, 2mA, 20mA, 200mA
- Three Power Supply Alternatives: 5VDC, ±5VDC or
- 9VDC (With Low Battery Indication)
Accessories
Available Now!
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
$179.91
$179.91
Simpson Electric
M145-1-0-14-1
Digital Panel Meter, Mini, 4-1/2 Digit LCD, Negative Red Backlight, +5VDC, 200VDC Range, 5VDC
$214.63
$110.34
Simpson Electric
M235-0-0-11-0

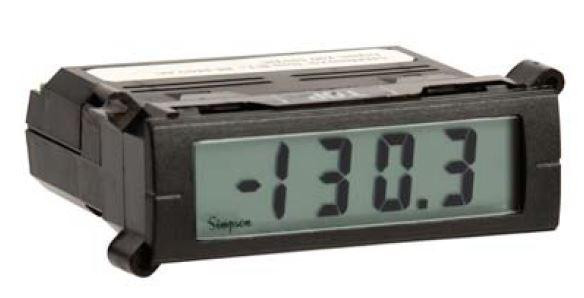

Digital Panel Meter, LCD, 85-250VAC, 200DCmV, 3.5" Digit LCD, Mini-Max
