$124.25
M135-0-0-22-0
Alt: M13500220
$121.37

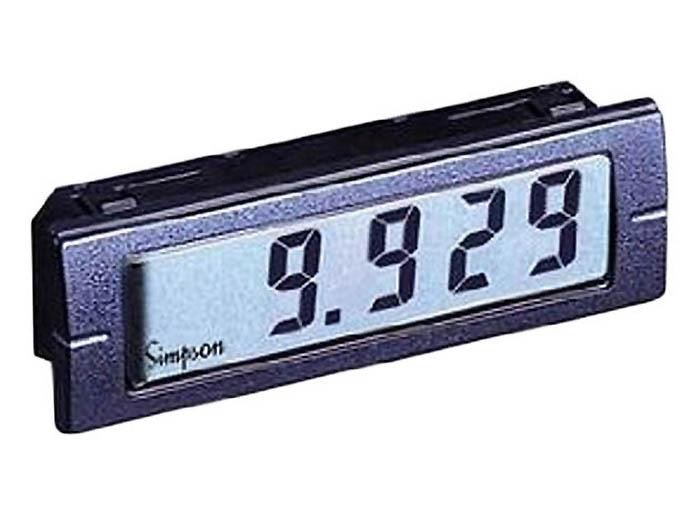

Digital Panel Meter, Mini, 3-1/2 Digit LCD, +5VDC, 2DCmA Range
- Weight:
- 0.25 LBS
- Minimum Purchase:
- 1 unit
Description
Simpson Electric Company has been a leading manufacturer of panel meters and test instruments since 1927.
Simpson Electric products are proudly manufactured in the USA and they are HUBZone Certified.
Marshall Wolf Automation is your authorized distributor for the complete line of Simpson analog panel meters, digital panel meters and test & measurement products.
Specifications
Alternate Part Number
M13500220
Amp Rating
See Spec
Analog/Digital
Digital
Meter Type
Panel Meter
Series
M135/M235 Series
All - Voltage
See Spec or N/A
Warranty
1 Year
Weight
.25
Features Include:
- DC Power: ±5V, +5V and +9V Low Power Indication included with 9V units
- Power Supply Current: 2mA max
- Backlight Supply Current: 50mA typical For 24 and 48 DCV, 10mA typical
- Type: 7-segment LCD
- Height: 0.5” (12.7mm)

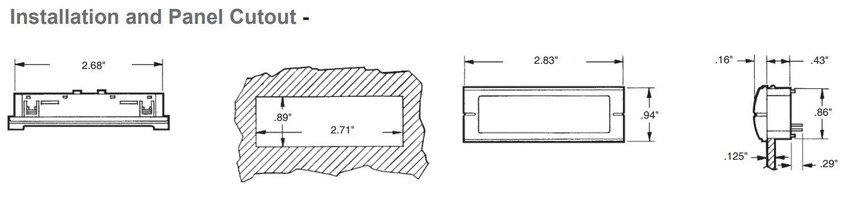

- Panel Cutout: 0.89” x 2.71” (22.6 mm x 68.8 mm)
- Case Material: 94-VO, UL-rated ABS
- Overrange Indication: Most significant = “1” other digits blank
