H335-1-14-0-2-0

H335-1-14-0-2-0

Alt: H335114020

$445.80

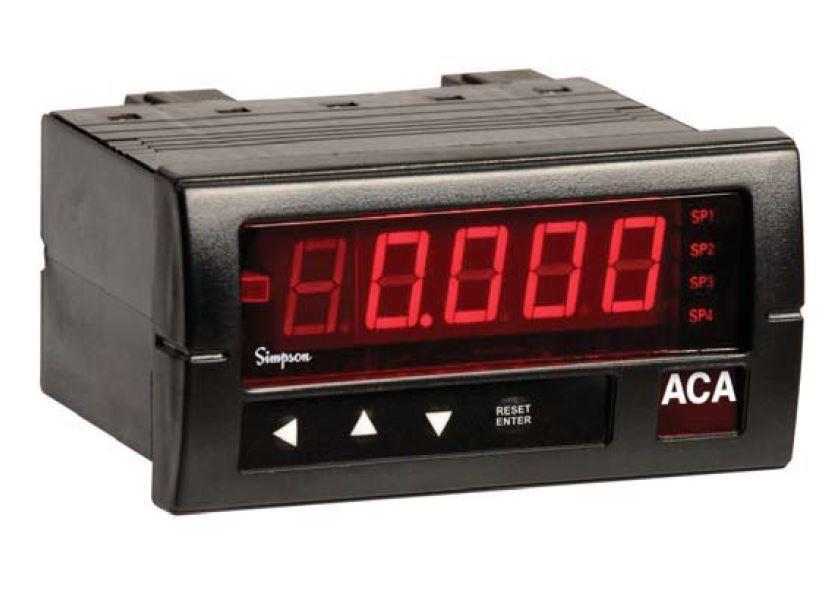

Digital Panel Meter/Controller, Hawk 3, 120VAC, 200VDC, 3-1/2 Digit, Red LED

Weight:
1.00 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description
Digital Panel Meter/Controller, Hawk 3, 120ACV, 200DCV, 3-1/2 Digit, Red LED

Series Features Include:

  • All parameters set from easy to understand front panel access
  • Optional one, two or four 5 amp relays
  • 7 segment 4-1/2 or 3-1/2 red LED with five brightness display levels
  • Activated set point indicators on display
  • Easy to understand programming menu
  • 16 point scaling linearization
  • Screw terminals for easy installation

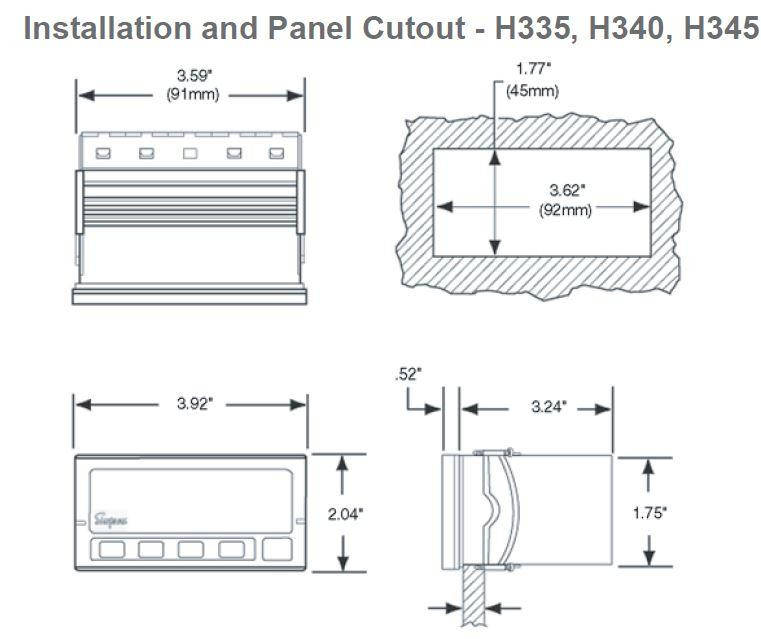

  • 1/8 DIN shallow depth case (only 3.24" behind panel)
  • Peak/Valley and password lockout
  • NEMA 4X rated front panel
