8811814420
Alt: DIGIRAIL OEE
$140.00

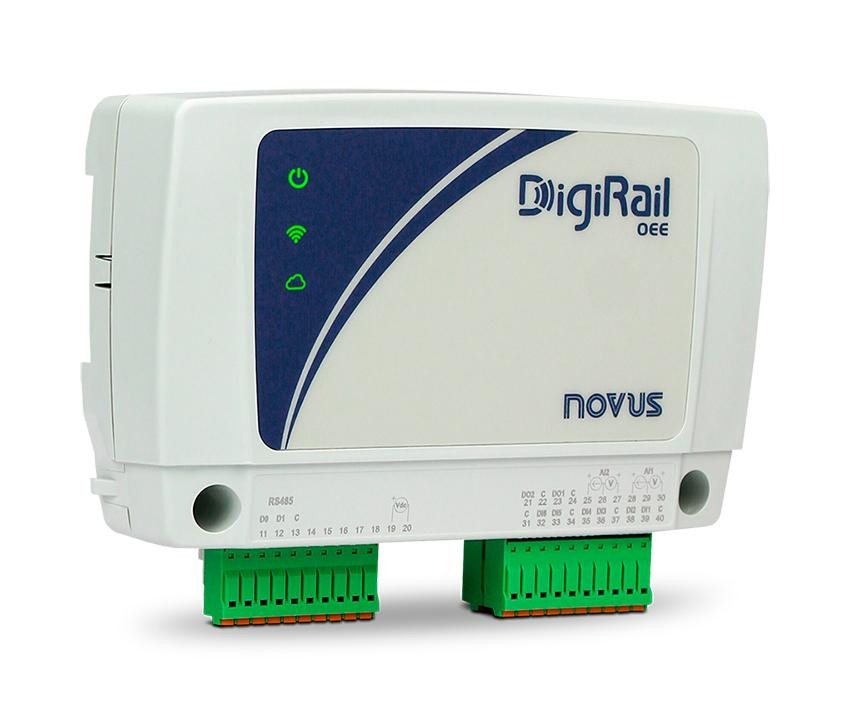

Digirail OEE, I/O Module, 2AI, 6DI, 2DO ETH, For OEE and MES Industrial Systems
- Minimum Purchase:
- 1 unit
Description
Features Include:
- Voltage Power Supply: 10 - 36 VDC
- Typical consumption: 50 mA @ 24V
- Maximum consumption: 120 mA @ 12V
- Inputs: 6 digital, 2 analog
- Digital Input Logical level "0": <0.5 V
- Digital Input Logical level "1": > 3 V
- Digital Input Maximum voltage: 30 V
- Digital Input impedance: 270 kΩ
- Digital Input Current: @ 30 VDC (typical) 0.15 mA
- Outputs: 2 digital
- Analog signals: 0-5 V, 0-10 V, 0-20 mA and 4-20 mA
- Digital signals: NPN, PNP and dry contact
- Analog channel resolution: Analog inputs: 15 bits (32000 levels)
- Communication interface: USB, Ethernet: 10/100 Mb / s, IEEE standard 802.3u, Wi-Fi 802.11 b / g / n 2.4 GHz ,RS485
- Software: NXperience
- Battery: CR2032 for internal clock retention
- Assembly: DIN rail or screw mounting.
- Degree of Protection: IP20
- Enclosure: ABS + PC
- Analog input impedance: mA: 15 Ω + 1.5 V, V: 1 MΩ
Maximum frequency (square wave):
- Dry contact: 10 Hz
- PNP: 3 kHz
- NPN: 3 kHz
Minimum pulse duration:
- Dry contact: 50 ms
- PNP: 150 us
- NPN: 150 us
Digital output characteristics:
- 2 NPN digital outputs
- Maximum current that can switch the output: 700 mA
