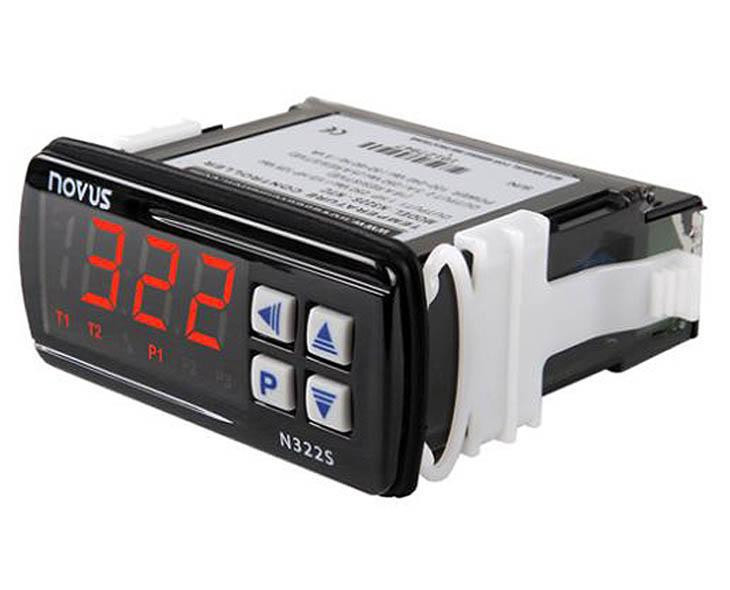

Product image is representative only, please verify specifications.
80322S3012
Alt: N322S NTC
$77.00
Differential Temperature Controller, Uses 2 NTC-Type Sensors, Two Outputs (Circulation Pump and Booster Water Heating Control) , For Solar Heating Applications
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Dif. Temp. Controller for Solar Heating Electronic Indicators and Thermostats
Features Include:
- NTC Thermistor, 10 k @ 25 °C; range: -30 to+105°C (-22 to 221 °F)
- Accuracy: 0.6 °C (1.1 ºF)
- Sensor interchangeability: 0.75 ºC (1.35 ºF). This error can be compensated by the offset parameter in the controller
- Measurement Resolution: 0.1 ºC from –19.9 °C to 119.9, 1 ºC elsewhere
- Output 1: Relay SPDT; 1 HP 250 VAC / 1/3 HP 125 VAC (16 A Resistive)
- Output 2: Relay: 3A / 250 VAC, SPST
- Power Supply: 100 to 240 VAC/DC 10 %
- Optionally: 12 to 30 VDC/AC
- Mains Frequency: 50~60 Hz
- Power Consumption: 5 VA
- Dimensions: Width x Height x Depth: 75 x 34 x 75 mm
- Panel: 70 x 29 mm
- Environment: Operating: 0 to 40 °C (32 to 122 ºF)
- Storage temperature: -20 a 60 °C (-4 to 140 ºF)
- Relative humidity: 20 to 85 % non-condensing
- Case: Polycarbonate UL94-2; Protection: Front panel: IP65, Box: IP42
- Suitable wiring: Up to 4.0 mm2
