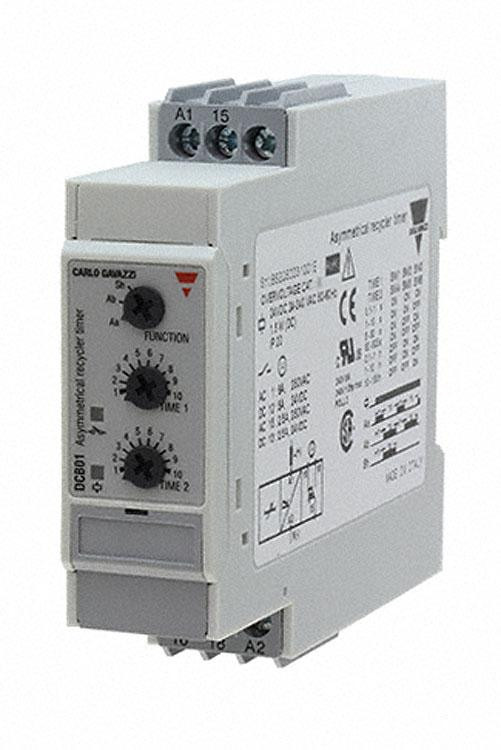

Product image is representative only, please verify specifications.
DCB01CM24
Alt: Minimum Order 5 Pieces, Price per Piece
$156.75
Timer, Asymmetrical Recyler, 0.1s-100h, SPDT, DIN Rail Mount
- Weight:
- 0.25 LBS
- Minimum Purchase:
- 5 units
Description
Timer, Asymmetrical Recyler, 0.1s-100h, SPDT, DIN-Rail Mount
Features Include:
- Time range 0.1 s to 100h
- Selection of time range by DIP switches
- Knob adjustable time setting Automatic start
- Output: 1 or 2 x SPDT relay
- For mounting on DIN rail in accordance with DIN/EN 50 022 or Plug-in
- 22.5 mm Euronorm or 36 mm plug-in module housing
- Combined AC and DC power supply voltage
- LED indication for relay status and power supply ON
- Power Supply (Rated Operational Voltage Through Terminals): A1, A2 - 24 VDC ± 15 % and (PCB01C) 2, 10: 24 to 240 VAC +10% -15% 45 to 65 Hz
- Voltage Interruption: ≤ 10 ms
- Rated Operational Power: 1.5 W
- Dimensions: 22.5 x 80 x 99.5 mm
- Rated Insulation Voltage (Output): 250 VAC (RMS)
Dielectric Strength:
- Dielectric Voltage: 2 kVAC (RMS)
- Rated impulse withstand voltage: 4 kV (1.2/50 µs)
4 knob selectable functions:
- Aa: Asymmetrical recycler ON first
- Ab: Asymmetrical recycler OFF first
- Sh: One shot time function
- Dt: Two state delay on operate (2 relays versions only)
