Carlo Gavazzi
RM1D060D100

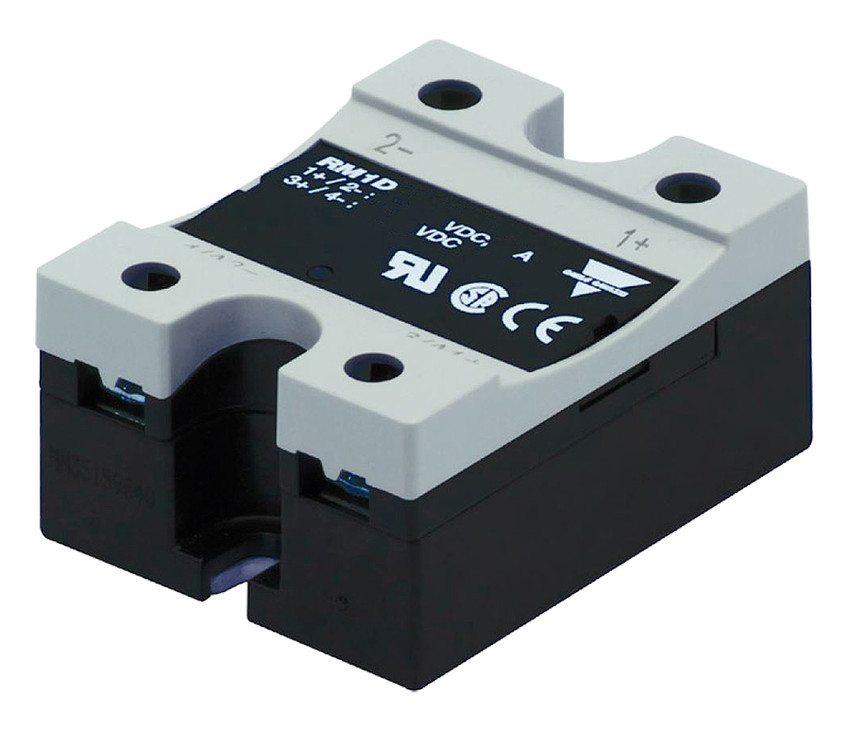

DC Solid State Relay, 100ADC Current, 60VDC Output Voltage, 4-32VDC Control Voltage, 1 Pole DC Switching, Hockey Puck Style
$101.60
RM1D060D10
Alt: Minimum Order 20 Pieces, SSR RM DC 60V 10A DC IP
$47.20
DC Solid State Relay, 10ADC Current, 60VDC Output Voltage, 4-32VDC Control Voltage, 1 Pole DC Switching, Hockey Puck Style
- Weight:
- 0.25 LBS
- Minimum Purchase:
- 20 units
Description
Carlo Gavazzi has introduced a solid state relay, in hockey puck form, that is for switching DC loads with ratings up to:
- 60VDC up to 100 amp
- 200VDC up to 50 amp
- 500VDC up to 10 amp
Unlike mechanical relays, solid state relays have a long life, are silent, very fast switching response times, more immune to vibration and shocks plus have no arcing or bouncing of contacts.
DC solid state relays are the ideal choice for the switching of DC loads!
Series Features Include:
- Rated output voltage: 60 VDC (1-60 VDC)
- Max. rated current (with heatsink): 10 ADC
- Low power dissipation output Mosfet
- Switching frequency up to 1000 Hz
- 4-32 VDC control voltage range
- LED for control presence indication
- Clip-on IP 20 protection cover
- Self-lifting terminals
- Housing free of molding mass
