Carlo Gavazzi

RM1D500D10

Alt: Manufacturer Minimum Order 20 Pieces, SSR RM DC 500V 10A DC IP

$78.40

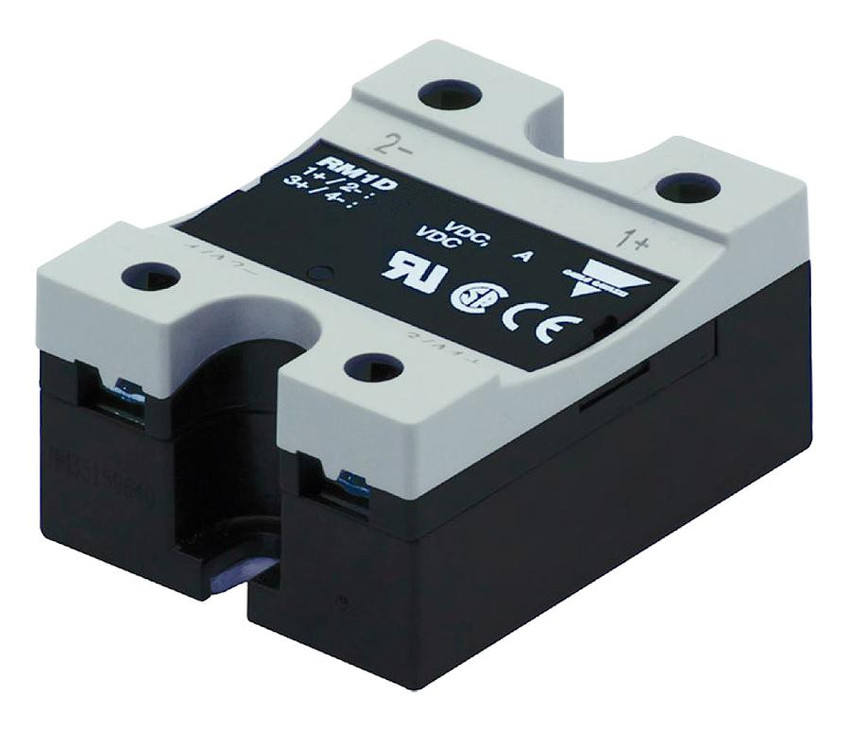

DC Solid State Relay, 10ADC Current, 500VDC Output Voltage, 4-32VDC Control Voltage, 1 Pole DC Switching, Hockey Puck Style, Manufacturer Minimum Order 20 Pieces, Price per Piece

Minimum Purchase:
20 units
Adding to cart… The item has been added
If you do not see the green 'in stock' circle on this item, Carlo Gavazzi is quoting 12 to 14 weeks for new orders (items may arrive sooner from our existing stock orders). We are happy to offer similar items with shorter lead times or from stock!
RM1D500D10
RM1D500D10
RM1D500D10
RM1D500D10
RM1D500D10
RM1D500D10
Description

Carlo Gavazzi has introduced a solid state relay, in hockey puck form, that is for switching DC loads with ratings up to:

  • 60VDC up to 100 amp
  • 200VDC up to 50 amp
  • 500VDC up to 10 amp

Unlike mechanical relays, solid state relays have a long life, are silent, very fast switching response times, more immune to vibration and shocks plus have no arcing or bouncing of contacts.

DC solid state relays are the ideal choice for the switching of DC loads!

Series Features Include:

  • Max. rated current (with heatsink): 10 ADC
  • Rated output voltage: 500 VDC (1-500 VDC)
  • Low power dissipation output Mosfet
  • Switching frequency up to 1000 Hz
  • 4-32 VDC control voltage range
  • LED for control presence indication
  • Clip-on IP 20 protection cover
  • Self-lifting terminals
  • Housing free of molding mass
