Dart Controls
153D-200E-PB-29

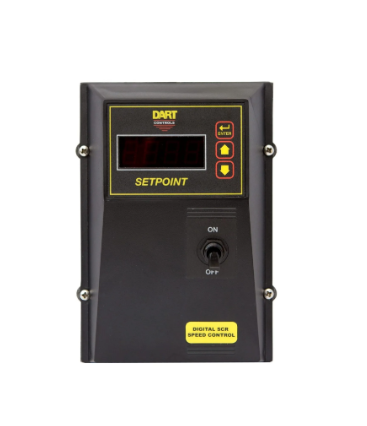

DC Drive, Digital Pushbutton Speed Potentiometer, 1/4 to 2hp, 120-240VAC In, 90-180VDC Out, NEMA 4X, Reversing. OEM DC Motor Speed Control, 150 E Series
$479.20
Available Now!
Available Now!
(1 in stock)
153D-200E-PB
Alt: DC Drive with Digital Potentiometer, NEMA 4X Cover
$399.20
DC Drive, Digital Pushbutton Speed Potentiometer, 1/4 to 2hp, 120-240VAC In, 90-180VDC Out, NEMA 4X Cover. OEM DC Motor Speed Control, 150 E Series
- Weight:
- 3.00 LBS
- Minimum Purchase:
- 1 unit
Description
The Dart Controls 153-PB models are part of the 150 Series. They add the accuracy and repeatability of a digital pushbutton speed pot to their latest DC drive! You can now have all the advantages of digital control without the need to install an encoder.
This is the only DC drive currently on the market with a standard digital potentiometer. This series is available in two models; 1/50 to 1/4hp (25E) or 1/4 to 2hp (20E).
Addtional features include NEMA 4X cover, 120/240VAC in, 90-180VDC out, 0.1% setting accuracy and MIN, MAX, IR, Accel, Decel & current limit adjust.
The Dart 153D-PB series will replace the following competitors drives:
- Baldor BC138/139/140/154
- Fincor 2131/2132/2301/2302/2331
- Leeson 174102/174107, 174307/174308, M1740006
- Minarik MM23 series - please call for a cross
- SECO 160/162
- American Control Electronics LGC & LGD 410/430/440, LGP443, MHS443, PAT440/443/450
The 153D-PB series was released in January 2020.
Features Include:
- Input Voltage: 120/240 VAC
- Input Frequency: 50/60 Hz
- Output Voltage: 0-90/180 VDC
- Output Amps DC: 2A – 10A
- HP Range: 1/8 - 2
- Acceleration: 0.5 - 8 seconds adjustable
- Speed Control: Via 5kW 1/2W potentiometer or 0-10Vdc isolated signal
- Speed Range:30:1
- Temperature Range: -10° to 40°C. ambient (15° to 104°F)
