Weg
CWC09-01-30C03I

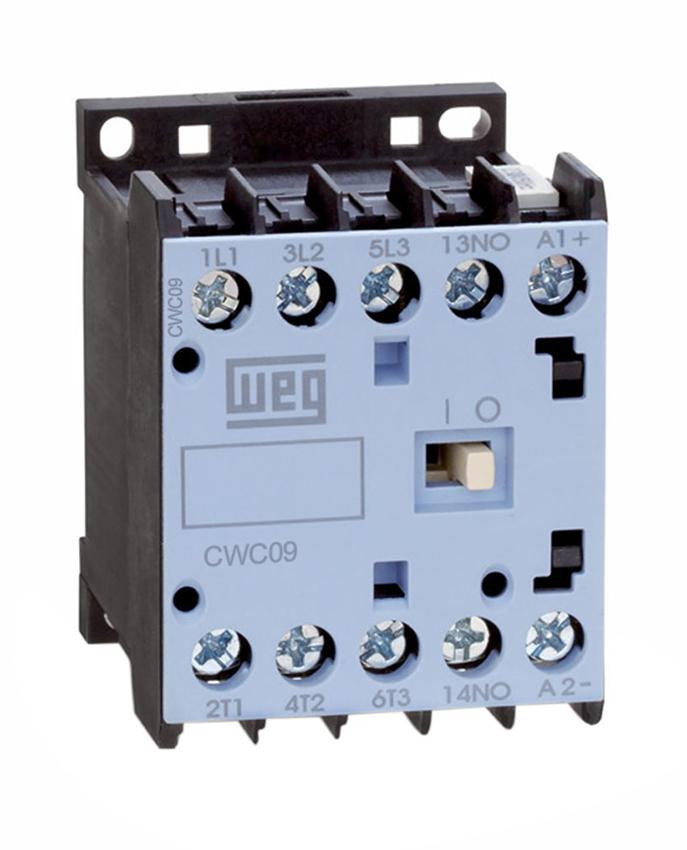

Mini Contactor, 9 Amp, 1NC Auxiliary Contacts, 3NO Power Poles, 24VDC, Printed Circuit Board Terminal, IP20, 2.28" x 1.77" x 2..05" (HWD), CWC Series
$25.96
**Tariff Update: Select Manufacturer Tariffs Will Begin on April 14th, 2025** Read the latest!
CWC09-10-30C03I
Alt: 12681761
$25.96
Mini Contactor, 9 Amp, 1NO Auxiliary Contacts, 3NO Power Poles, 24VDC, Printed Circuit Board Terminal, IP20, 2.28" x 1.77" x 2..05" (HWD), CWC Series
- Weight:
- 0.56 LBS
- Minimum Purchase:
- 1 unit
Description
Our WEG CWC series of mini contactors are a compact and powerful solution for circuit switching and control operation.
This series is available in three pole and four pole up to 15hp at 460VAC (22A). This series features more horsepower for its size than any other miniature contactor on the market!
- CWC0: Miniature power contactors
- CWCA0: Miniature contactor control relay with AC or DC coil
Specifications
Alternate Part Number
12681761
Amp Rating
9 Amp
Coil Voltage
24V Coil
Motor Control Type
Miniature Contactor
Horsepower
See Spec
Poles
See Spec or N/A
All - Specific Ratings
IP20 Rated
Series
CWC Series
Options
DIN Rail Mount, Enclosed
Terminal Type
See Spec or N/A
All - Voltage
600V, 690V
Warranty
18 Months
Weight
0.56
Features Include:
- Rated current: 9 A
- Control voltage: 24V DC
- Main contact: 3 NO
- Terminal type: Printed Circuit board terminal
- Rated operational voltage Ue - IEC 60947-4-1: 690 V
- Rated operational voltage Ue - UL/CSA: 600 V

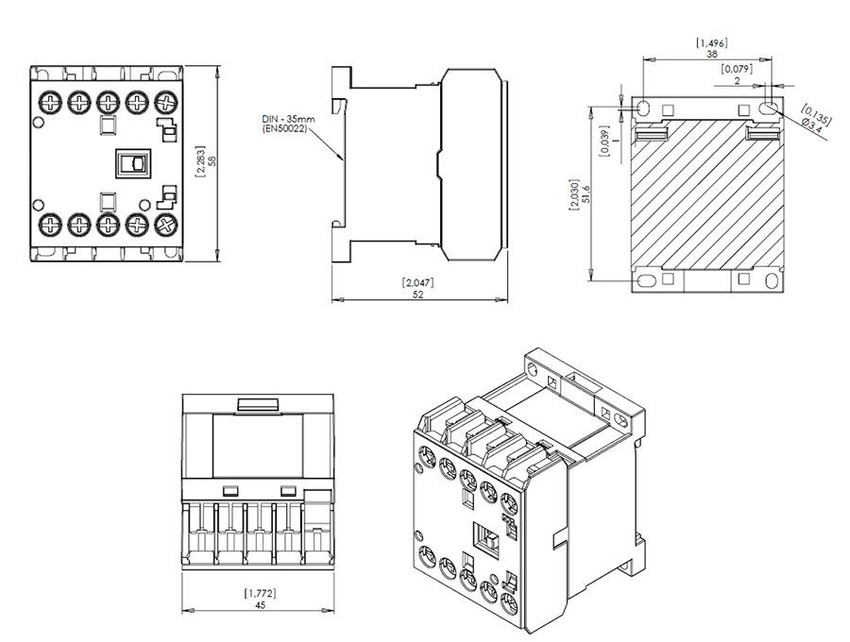

- Height: 58 mm (2.28 in)
- Width: 45 mm (1.77 in)
- Depth: 52 mm (2.05 in)
- AC and DC compact contactor with the same size for series up to 16 A, simplifying panel designs
- Insulation voltage of 690 kV
- The technology of the compact contactors with control in low-consumption DC current enables the use of smaller power supplies
- Quick rail mounting
