Weg
CWC09-01-30V04
Mini Contactor, 9 Amp, 1NC Auxiliary Contacts, 3NO Power Poles, 20V 50Hz/24V 60Hz, Screw Terminal, IP20, 2.28" x 1.77" x 2..05" (HWD), CWC Series
$15.12
CWC09-01-30V04-X50
Alt: 13232105
$15.12
Mini Contactor, 9 Amp, 1NC Auxiliary Contacts, 3NO Power Poles, 20V 50Hz/24V 60Hz, Screw Terminal, IP20, 2.28" x 1.77" x 2..05" (HWD), CWC Series
- Weight:
- 0.43 LBS
- Minimum Purchase:
- 1 unit
Description
Our WEG CWC series of mini contactors are a compact and powerful solution for circuit switching and control operation.
This series is available in three pole and four pole up to 15hp at 460VAC (22A). This series features more horsepower for its size than any other miniature contactor on the market!

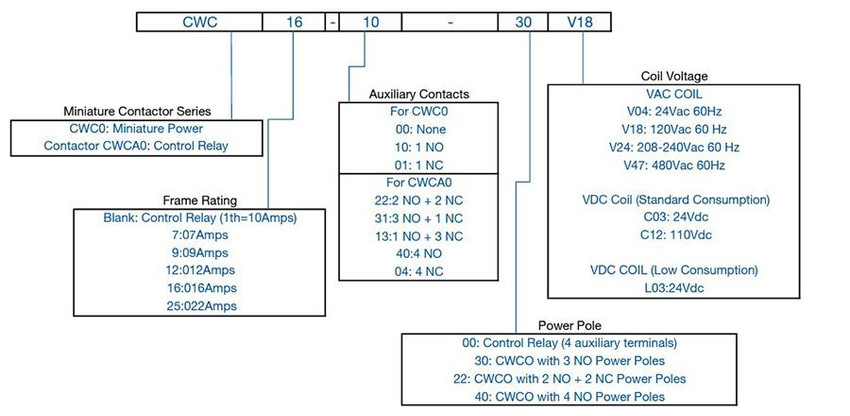

- CWC0: Miniature power contactors
- CWCA0: Miniature contactor control relay with AC or DC coil
Features Include:
- Rated current: 9 A
- Control voltage: 20V 50Hz/24V 60Hz
- Main contact: 3 NO
- Terminal type: Screw
- Rated operational voltage Ue - IEC 60947-4-1: 1000 V
- Rated operational voltage Ue - UL/CSA: 600 V
- Height: 58 mm (2.28 in)
- Width: 45 mm (1.77 in)
- Depth: 52 mm (2.05 in)
- AC and DC compact contactor with the same size for series up to 16 A, simplifying panel designs
- Insulation voltage of 690 kV
- The technology of the compact contactors with control in low-consumption DC current enables the use of smaller power supplies
- Quick rail mounting
