Weg
CWC016-01-30V24
Mini Contactor, 16 Amp, 1NC Auxiliary Contacts, 3NO Power Poles, 180-208V 50Hz/208-240V 60Hz, Screw Terminal, IP20, 2.28 x 1.77 x 2.05" (HWD), CWC Series
$20.35
CWC016-10-30V24
Alt: 12679911
$20.35
Mini Contactor, 16 Amp, 1NO Auxiliary Contacts, 3NO Power Poles, 180-208V 50Hz/208-240V 60Hz, Screw Terminal, IP20, 2.28 x 1.77 x 2.05" (HWD), CWC Series
- Weight:
- 0.43 LBS
- Minimum Purchase:
- 1 unit
Description

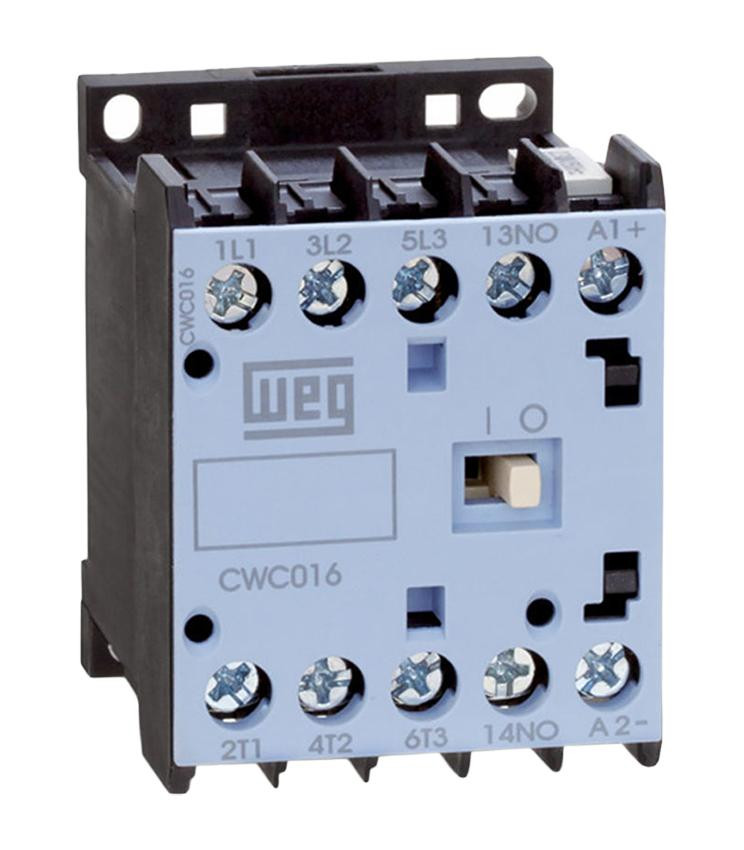

Our WEG CWC series of mini contactors are a compact and powerful solution for circuit switching and control operation.
This series is available in three pole and four pole up to 15hp at 460VAC (22A). This series features more horsepower for its size than any other miniature contactor on the market!
- CWC0: Miniature power contactors
- CWCA0: Miniature contactor control relay with AC or DC coil
Features Include:
- Rated current: 16 A
- Control voltage: 180-208V 50Hz/208-240V 60Hz
- Main contact: 3 NO
- Terminal type: Screw
- Rated operational voltage Ue - IEC 60947-4-1: 690 V
- Rated operational voltage Ue - UL/CSA: 600 V

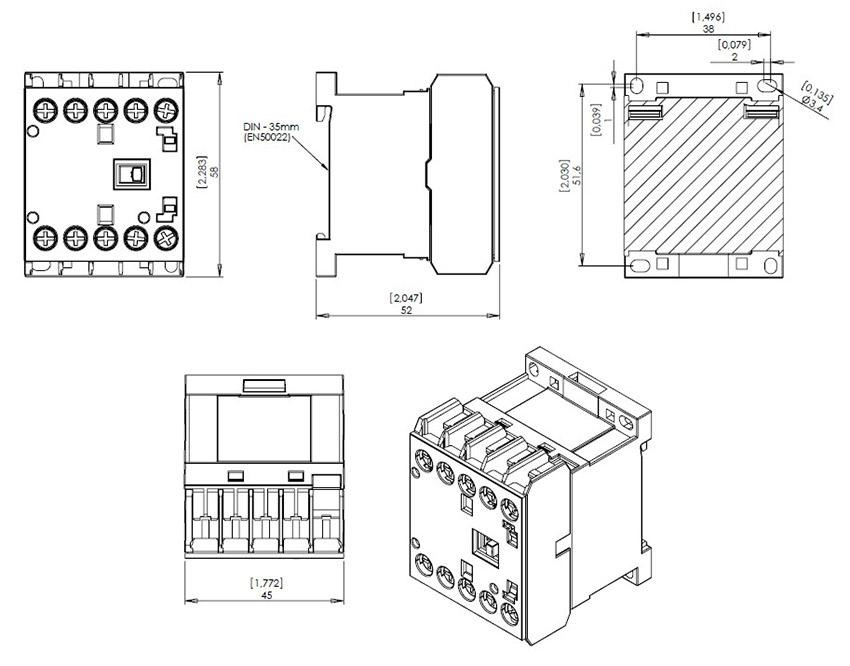

- Height: 58 mm (2.28 in)
- Width: 45 mm (1.77 in)
- Depth: 52 mm (2.05 in)
- AC and DC compact contactor with the same size for series up to 16 A, simplifying panel designs
- Insulation voltage of 690 kV
- The technology of the compact contactors with control in low-consumption DC current enables the use of smaller power supplies
- Quick rail mounting
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Weg
CWC016-10-30C12
Mini Contactor, 16 Amp, 1NO Auxiliary Contacts, 3NO Power Poles, 110VDC, Screw Terminal, IP20, 2.28 x 1.77 x 2.05" (HWD), CWC Series
$22.96
Weg
CWC016-10-30V10
Mini Contactor, 16 Amp, 1NO Auxiliary Contacts, 3NO Power Poles, 42V 50Hz/48V 60Hz, Screw Terminal, IP20, 2.28 x 1.77 x 2.05" (HWD), CWC Series
$20.35
Weg
CWC016-10-30V47
Mini Contactor, 16 Amp, 1NO Auxiliary Contacts, 3NO Power Poles, 400-415V 50Hz/480V 60Hz, Screw Terminal, IP20, 2.28 x 1.77 x 2.05" (HWD), CWC Series
$20.35
Weg
CWC016-10-30C02
Mini Contactor, 16 Amp, 1NO Auxiliary Contacts, 3NO Power Poles, 12VDC, Screw Terminal, IP20, 2.28 x 1.77 x 2.05" (HWD), CWC Series
$22.96
Weg
CWC09-10-30V24
Mini Contactor, 9 Amp, 1NO Auxiliary Contact, 3NO Power Poles, 180-208V 50Hz/208-240V 60Hz, Screw Terminal, IP20, 2.28 x 1.77 x 2.05" (HWD), CWC Series
$15.12
$22.96
Weg
CWC016-10-30V56
Mini Contactor, 16 Amp, 1NO Auxiliary Contacts, 3NO Power Poles, 500V 50Hz/600V 60Hz, Screw Terminal, IP20, 2.28 x 1.77 x 2.05" (HWD), CWC Series
$20.35
Weg
CWC016-10-30C03
Mini Contactor, 16 Amp, 1NO Auxiliary Contacts, 3NO Power Poles, 24VDC, Screw Terminal, IP20, 2.28 x 1.77 x 2.05" (HWD), CWC Series
$22.96
