Alt: CW Touchless Series, Without Timer, Non-Cancellable, No Returns
$52.24
(You save)

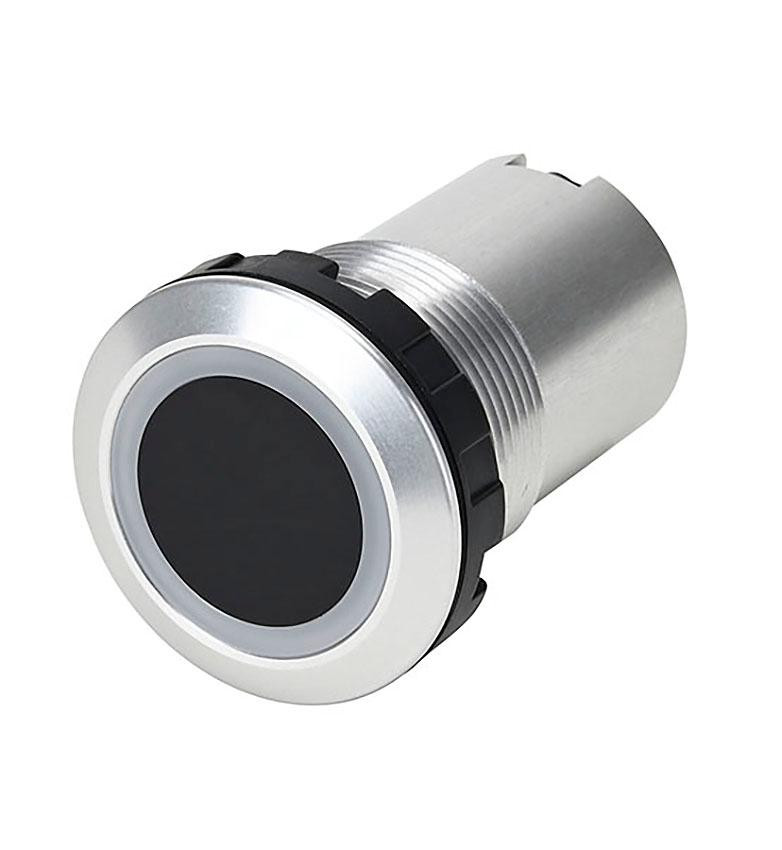

Touchless Switch, Ø22mm, Silver Metal Bezel, Without Timer, IP65/67, UL 4X Certified, Indoor or Outdoor Use, Adjustable Detection Distance, Two Color LED Illumination Enables ID of Output and Standby, NCNR
SKU:
CW4H-DM1NGR-C
Weight:
0.25 LBS
Minimum Purchase:
1 unit
Touchless switches reduce the risk in public and shared spaces, can be used indoors or out!
IDEC's CW series of touchless switches reduce the risk in public and shared spaces! The need for touchless switches to minimize the spread of viruses continues to rise.
They are suitable for indoor or outdoor use, have adjustable detection distance plus offer a 2-color LED illumination to ID output and standby.

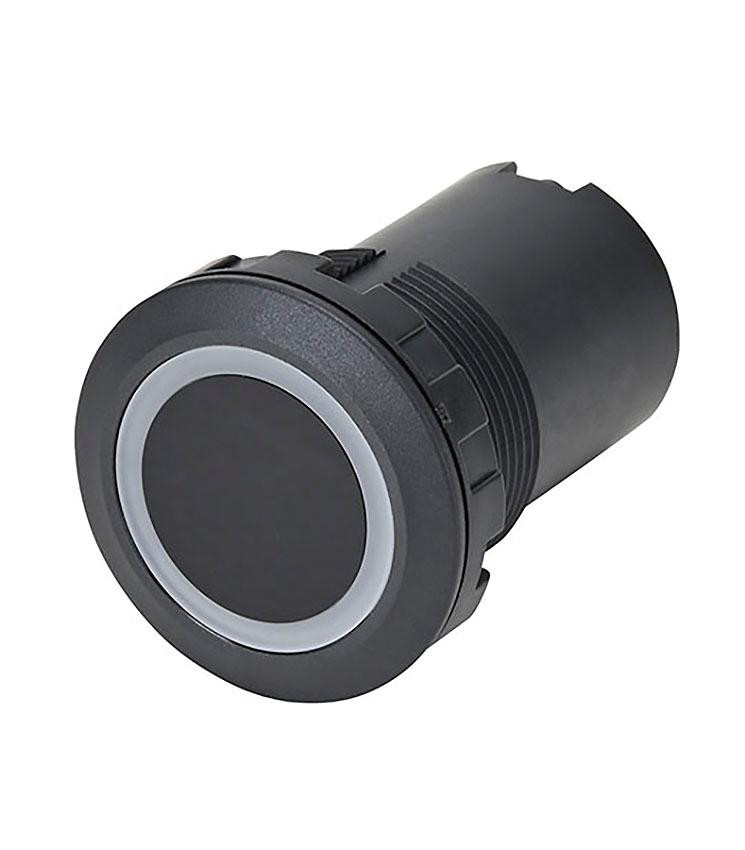

Available with a black plastic bezel (CW1H) or silver metal bezel (CW4H), you can choose with or without a timer.
Features Include:
Detection Mode: Diffuse reflection method
Light Source: Infrared LED
Rated Voltage: 12 to 24V DC Allowable ripple rate ±10%
Control Output: Load power supply voltage: 24V DC± 10% max. (Load current:100mA max.)
Current Draw: 40mA maximum (main circuit), 20mA maximum (illumination part)
Illumination Color: Light 1: Green, Light 2: Red
Protection Circuit: Power supply reverse connection protection
Protective structure: IP65/67, can be used outdoors, UL Type 4X (Outdoor) certified.
Feedback of output, standby, and other statuses by externally controlled 2-color LED illumination.
Near-infrared reflective system with adjustable detection distance of up to 270 mm.
Delay timer type is available to prevent unintended activation
