CW1B-M2E10S

IDEC is well known for their pushbuttons! They are the best engineered switches in the world.

Carrying the CE mark, UL, CSA, CCC and TUV approvals - you can use these switches anywhere. Finger-safe contact blocks offering IP20 protection and you can choose from illuminated and non-illuminated options.

Marshall Wolf Automation is a large stocking distributor of the complete line of IDEC.

HW 22mm Heavy Duty:

• IEC style, tamperproof mounting
• Modular stackable contact blocks with IP20 fingersafe screw terminals
• IP65
• HW series also offers a unibody e-stop with one piece construction

TW 22mm Metal Bezel

• Traditional NEMA style switch
• Illuminated or non-illuminated pushbuttons as well as pilot lights, selectors, key switches and e-stops
• NEMA 4X/Ip65
• Many in this series start with an 'A'

TWND 30mm Heavy Duty

• Heavy duty design for all types of harsh environments
• Many in this series start with an 'A'
• Ideal for food and beverage, metal working, papermills and agricultural applications

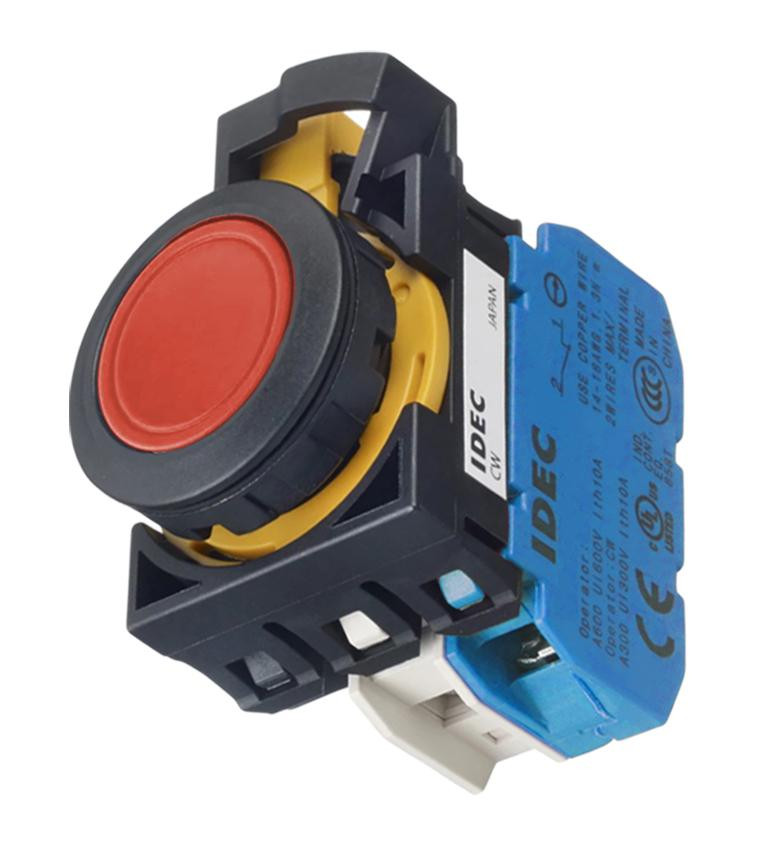

CW 22mm Flush Mount

• Only 2mm above panel!

LB 16mm Space-Saving

• Standard bezel with 16mm hole size

LB 18mm Flush Mount

• Sleek flush mount design
• Only 34.9mm depth behind

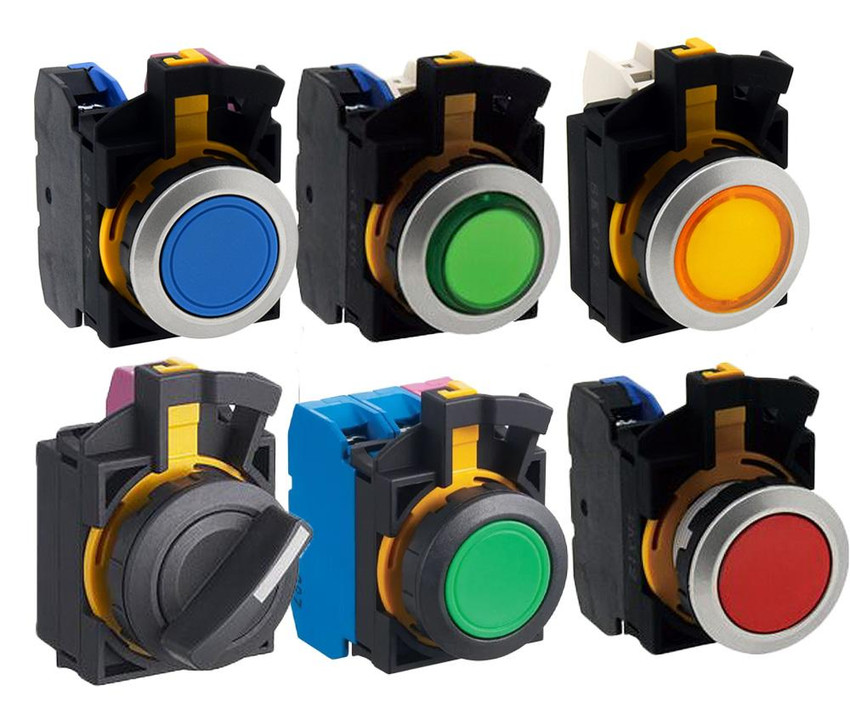

Series Features Include:

• Flush mount bezel only 2mm above panel
• ø22.3mm mounting hole compliant with IEC 60947-5-1
• 3.5mm operator travel for pushbuttons ensures comfortable and reliable operation
• Black and metallic bezels available
• Illuminated push buttons, push buttons, pilot lights, selector switches and key selector switches are available
• Direct opening NC contact
• 10A contact rating
• Up to 6 contacts per switch
• UL Type 4X rating

Technical Information:

• IDEC ø22mm Flush Mount CW Series Catalog
• IDEC ø22mm Flush Mount CW Series Brochure
• IDEC ø22 mm CW Series Flush Silhouette Switches Brochure
