$99.77
37020
$61.66
Current Transformer w/Terminals, 100/5A
- Weight:
- 1.20 LBS
- Minimum Purchase:
- 1 unit
Description

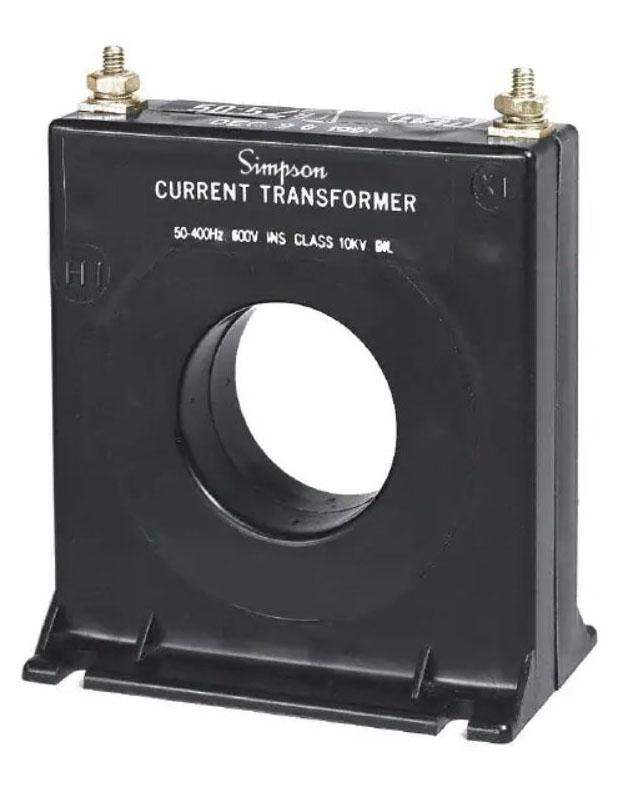

Current Transformer w/ Terminals, 100/5A
Specifications
Phase
See Spec or N/A
Primary Voltage
See Spec or N/A
Series
See Specs
Type of Transformer
Current Transformer
VA
See Spec or N/A
Warranty
1 Year
Weight
1.2
Features Include:
- Frequency: 50-400Hz
- Insulation Class: 0.6kV BIL, 10kV full wave
- Weight: 1.0lb (453.59kg)
- Range: 100:5
- Burden VA @60Hz: 2.0
Accuracy:
- ±2.0% (100 Amp)
- ±1.0% (100 - 1000 Amp)
