SRW01-UMC3

WEG SRW01 series are smart relays that provide protection, control, data magagement and diagnosis of low voltage electric motors.

These smart relays can be used in several industrial network protocols and can be expanded with more digital inputs and outputs.

Plug and play connectors, free WLP programming software and a USB communication port makes this a great solution!

Models available with:

• Modbus-TCP
• PROFINET IO
• EtherNet/IP
• Modbus-RTU
• Profibus
• DeviceNet

Marshall Wolf Automation is your authorized WEG distributor!

Features Include:

• Protection: ELS - Earth leakage sensor
• USB Port
• Reliable operating modes and command
• Status LED indicator that simplifies the identification of the operation
• User-friendly interface
• 6 digital inputs, 4 outputs
• The Control Unit (UC) can be assembled with the Current Measuring Unit (UMC) or current and voltage measuring unit (SRW01-UMCT), forming a single unit, or separated (up to 2 meters).
• Control Unit (UC) input power range: 110-240 V ac/dc or 24 V ac/dc
• Control Unit (UC) with 4 digital inputs and 4 digital outputs
• DIN rail or screws mounting
• Easy network module change, via exclusive drawer system
• Programming via free WLP software or HMI (optional)

Can be parameterized, programmed and monitored in three different ways:

• Via networks (DeviceNet, Profibus-DP, Modbus-RTU, EtherNet/IP, Modbus-TCP and PROFINET IO)
• Via human machine interface - HMI (SRW01-HMI)
• Via USB with the free WLP software

Technical Information:

• Weg SRW01 Smart Relay Flyer
• Weg SRW01 Smart Relay Brochure
• Weg SRW01 Smart Relay User's Manual
• Weg SRW01 Smart Relay User's Manual Addendum

Installation and Configuration Guides:

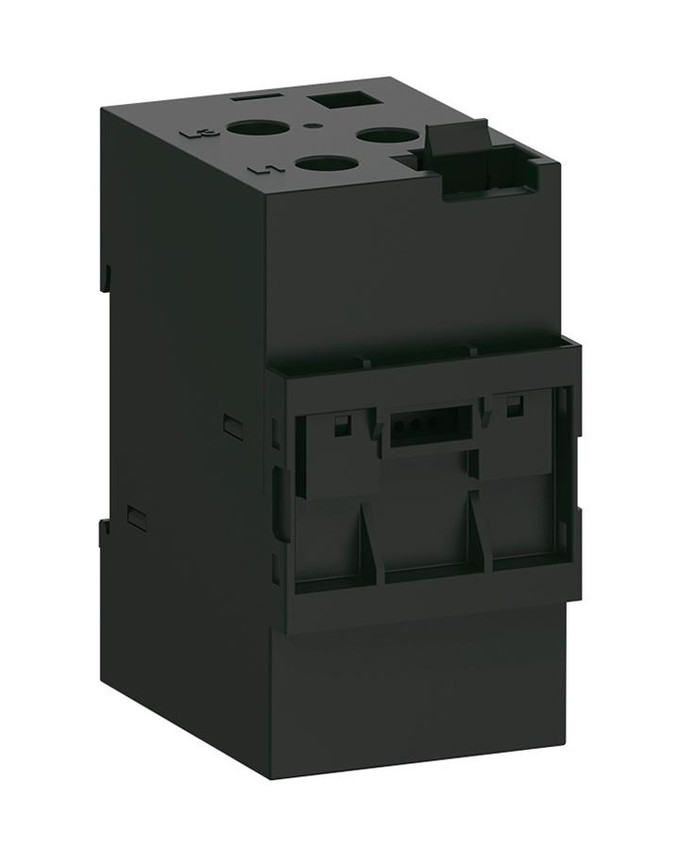

• Weg SRW01-UMC Current Measurement Unit Installation, Configuration and Operation Guide
• Weg SRW01-UMCT Installation, Configuration and Operation Guide
• Weg SRW01-ELS Earth Leakage Sensor Installation, Configuration and Operation Guide
• Weg SRW01-EDU Expansion Digital Unit Installation, Configuration and Operation Guide
• Weg SRW01-HMI Human Machine Interface Installation, Configuration and Operation Guide
• Weg SRW01-UC Ethernet Control Unit Installation Instruction

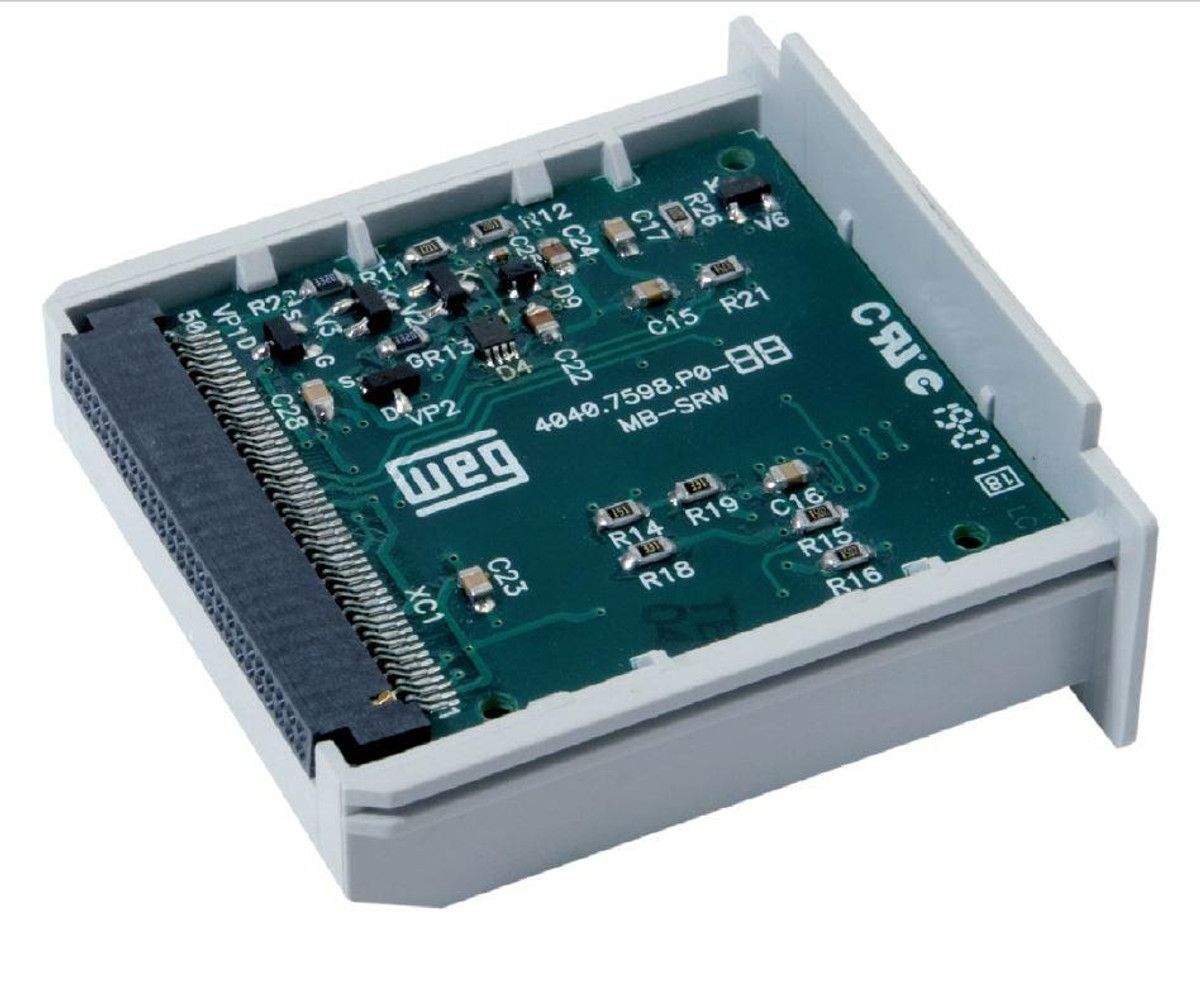

• Weg SRW01-MC Communication Module Installation Instruction
• Weg SRW01-AUSB USB Adapter Installation Instruction

Communication Options Technical Information:

• Weg SRW01 DeviceNet User's Manual
• Weg SRW01 DeviceNet Communication Manual
• Weg SRW01 Modbus RTU User's Manual
• Weg SRW01 Modbus RTU Communication Manual
• Weg SRW01 Profibus DP User's Manual
• Weg SRW01 Profibus DP Communication Manual
