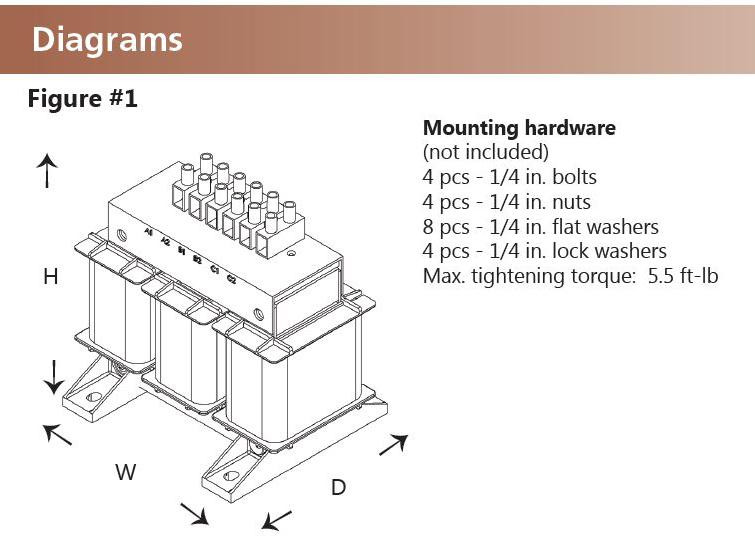

Product image is representative only, please verify specifications.
CRX0034AC
Alt: Centurion R Series
Line Reactor, Three Phase, 34 Amp, 25hp, 480V, 60Hz, 3% Impedance, 0.68mH Inductance, 80 Watts Loss, Open Core and Coil, Terminal Block
- Weight:
- 13.00 LBS
- Minimum Purchase:
- 1 unit
Our Hammond HPS Centurion™ R reactor offers improved performance and reliability while reducing the product footprint. HPS Centurion™ R reactors deliver protection for your motors and drives. They are available in standard ratings from 0.5 HP (373 Watts) to 1000 HP (745 kilowatts), up to 600 V (690 V with de-rating) and are fully compliant with UL, CSA, CE, IEC, and NEMA standards.
The efficient and cost effective HPS Centurion™ R reactors are built to address both line-side and load-side issues associated with demanding AC drive applications.
- Minimization of harmonic distortion
- Mitigation of nuisance tripping
- Reduced line notching
- Extended life of switching components and motors
- Reduced audible motor noise and motor operating temperature
Features Include:
- Inductance (mH): 0.68
- Watts Loss: 80
- Amps: 34
- System Voltage Ratings: 480 V @ 60Hz
- Altitude (de-rating): Comply with NEMA ST20
- Inductance Tolerance: +15/-10%
- Inductance Curve [% Nominal Inductance (L) @ % Rated Current (l)]: 100% at 100% Current; 95% at 110% Current; 80% at 150% Current; 50% at 200% Current
- Dielectric strength to ground: 4000 volts for 1 minute or equivalent
- Cooling Method: Natural Convection
- Enclosure: Core and Coil or Type 1 (Type 3R available upon request)
- Insulation Class: 70 deg. C rise over average 50 deg. C ambient for 130 deg. C Temperature Class; 115 deg. C rise over average 50 deg. C ambient for 180 deg. C and 220 deg. C Temperature Classes
- Compliance & Approvals: UL 508, CSA C9, CSA C22.2 No. 47 standards, CE Mark (IEC 61558-2-20:2000), UL listed (up to 600V), file No. E61431, CSA Certified file No LR3902, IEC 61558-2-20
Reactor Benefits:
- Minimization of harmonic distortion
- Mitigation of nuisance tripping
- Reduced line notching
- Extended life of switching components and motors
- Reduced audible motor noise and motor operating temperature
Technical Information:
- HPS Centurion™ R Reactor Brochure
- HPS Centurion™ R Reactor Catalog
- HPS Centurion™ R Reactor FAQ
- HPS Centurion™ R Iron Core Reactors Installation, Operation and Maintenance Guide
- HPS Centurion™ R Core & Coil Reactor Installation Instructions
- HPS Centurion™ R Enclosed Reactor Installation Instructions
- HPS Centurion™ R Enclosed 1.2kV Class Iron Core Reactor Typical Specifications
