$210.00

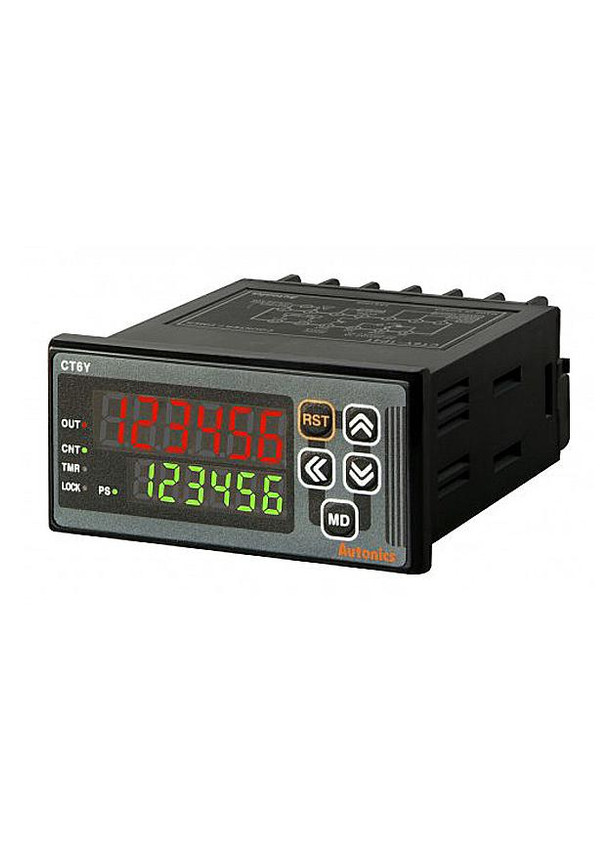

CT6Y-2P4T
$211.00
Counter/Timer, 6-Digit, 2-Stage Preset, 72x36mm, DIN, SPDT, NPN, RS485, 100-240VAC, 50/60Hz
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 1 unit
Description
Counter/Timer, 6-Digit, 2-Stage Preset, 72x36mm, DIN, SPDT, NPN, RS485, 100-240VAC 50/60Hz
Features Include:
- Prescale value setting range – 6-digit model: 0.00001 to 99999.9 / 4-digit model: 0.001 to 999.9
- Communication function supported (communication model): RS485 (Modbus RTU)
- One-shot output time setting range - 0.01 sec. to 99.99 sec. by setting per 10ms
- Counter:
- 9 input modes/11 output modes
- BATCH counter
- Count Start Point (counting initial value) setting function
- Timer:
- 11 output modes
- Various time setting range– 6-digit model: 0.001 sec. to 99999.9 hour / 4-digit model: 0.001 sec. to 9999 hour
- ‘0’ time setting function
- Selectable timer memory retention function for indicator model.
Need More Information?
- Autonics CT Series Catalog
- Autonics CT Series User Manual
- Autonics CT Series Instruction Manual
- Autonics CT Series User Manual for Communication
- Autonics Device Integrated Management Program DAQMaster User Manual
- Autonics DS/DA-CT Series Direct Connection Technical Support Manual
- Autonics Counters Selection Guide
- Autonics Counters Technical Description
- Autonics Counters Product Overview
- Autonics Counters Application Examples
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Autonics
CT6Y-2P4
Counter/Timer, 6-Digit, 2-Stage Preset, 72x36mm, DIN, SPDT, NPN, 100-240VAC, 50/60Hz
$155.00
Autonics
CT6Y-2P2
Counter/Timer, 6-Digit, 2-Stage Preset, 72x36mm, DIN, SPDT, NPN, 24VAC, 50/60Hz, 24-48VDC
$155.00
Autonics
CT6Y-1P2
Counter/Timer, 6-Digit, 1-Stage Preset, 72x36mm, DIN, SPDT, NPN, 24VAC, 50/60Hz, 24-48VDC
$140.00
Autonics
CT6Y-1P4
Counter/Timer, 6-Digit, 1-Stage Preset, 72x36mm, DIN, SPDT, NPN, 100-240VAC, 50/60Hz
$134.49
