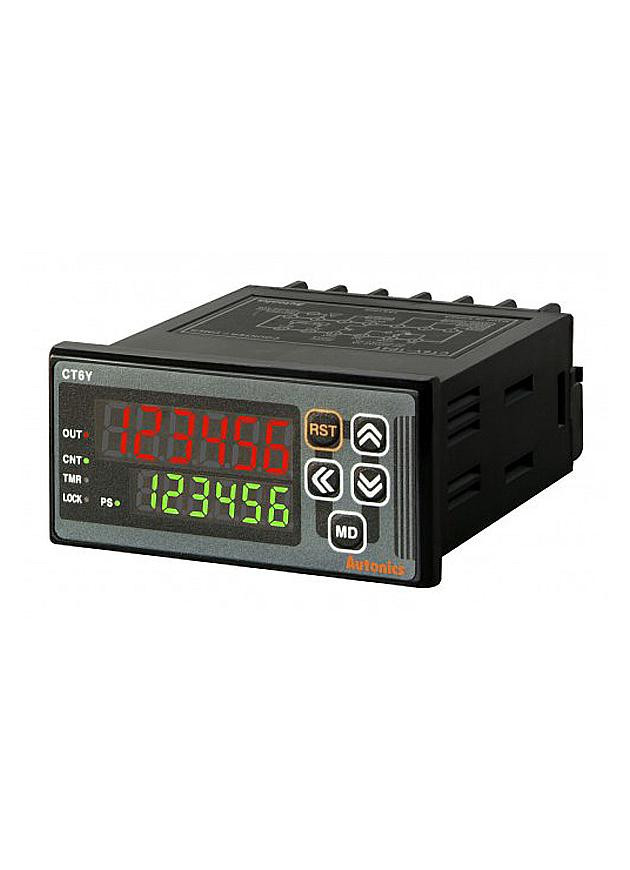

Autonics
CT6Y-2P4
Counter/Timer, 6-Digit, 2-Stage Preset, 72x36mm, DIN, SPDT, NPN, 100-240VAC, 50/60Hz
$155.00
CT6S-2P4
$166.00
Counter/Timer, 6-Digit, 2-Stage Preset, 48x48mm, DIN, SPDT, NPN, 100-240VAC, 50/60Hz
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Counter/Timer, 6-Digit, 2-Stage Preset, 48x48mm, DIN, SPDT, NPN, 100-240VAC 50/60Hz
Features Include:
- Prescale value setting range – 6-digit model: 0.00001 to 99999.9 / 4-digit model: 0.001 to 999.9
- Communication function supported (communication model): RS485 (Modbus RTU)
- One-shot output time setting range - 0.01 sec. to 99.99 sec. by setting per 10ms
- Counter:
- 9 input modes/11 output modes
- BATCH counter
- Count Start Point (counting initial value) setting function
- Timer:
- 11 output modes
- Various time setting range– 6-digit model: 0.001 sec. to 99999.9 hour / 4-digit model: 0.001 sec. to 9999 hour
- ‘0’ time setting function
- Selectable timer memory retention function for indicator model.
Need More Information?
- Autonics CT Series Catalog
- Autonics CT Series User Manual
- Autonics CT Series Instruction Manual
- Autonics CT Series User Manual for Communication
- Autonics Device Integrated Management Program DAQMaster User Manual
- Autonics DS/DA-CT Series Direct Connection Technical Support Manual
- Autonics Counters Selection Guide
- Autonics Counters Technical Description
- Autonics Counters Product Overview
- Autonics Counters Application Examples
