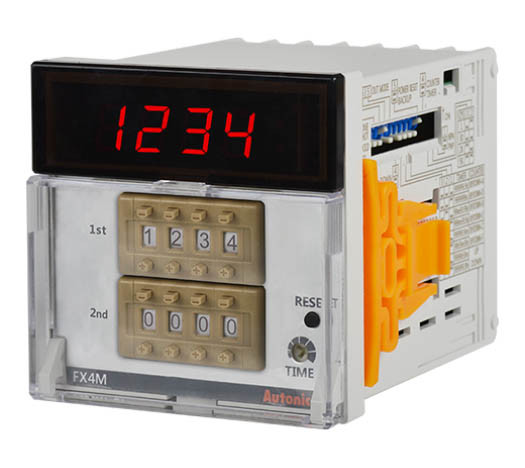

Autonics
FX4M-1P4
Counter & Timer, W72xH72mm, 4-Digit, LED, 1 Preset, Relay & NPN Output, 100-240VAC, 50/60Hz
$165.00

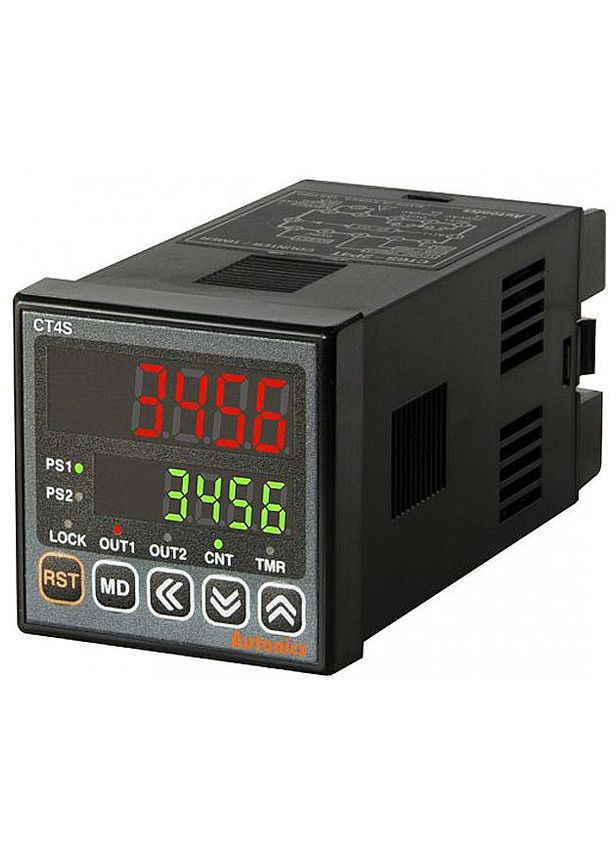

CT4S-1P4
$125.00
Counter/Timer, 4-Digit, 1-Stage Preset, 48x48mm, DIN, SPDT, NPN, 100-240VAC, 50/60Hz
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Counter/Timer, 4-Digit, 1-Stage Preset, 48x48mm, DIN, SPDT, NPN, 100-240VAC 50/60Hz
Features Include:
- Prescale value setting range – 6-digit model: 0.00001 to 99999.9 / 4-digit model: 0.001 to 999.9
- Communication function supported (communication model): RS485 (Modbus RTU)
- One-shot output time setting range - 0.01 sec. to 99.99 sec. by setting per 10ms
- Counter:
- 9 input modes/11 output modes
- BATCH counter
- Count Start Point (counting initial value) setting function
- Timer:
- 11 output modes
- Various time setting range– 6-digit model: 0.001 sec. to 99999.9 hour / 4-digit model: 0.001 sec. to 9999 hour
- ‘0’ time setting function
- Selectable timer memory retention function for indicator model.
Need More Information?
- Autonics CT Series Catalog
- Autonics CT Series User Manual
- Autonics CT Series Instruction Manual
- Autonics CT Series User Manual for Communication
- Autonics Device Integrated Management Program DAQMaster User Manual
- Autonics DS/DA-CT Series Direct Connection Technical Support Manual
- Autonics Counters Selection Guide
- Autonics Counters Technical Description
- Autonics Counters Product Overview
- Autonics Counters Application Examples
Accessories
Available Now!
Available Now!
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Autonics
CT6M-1P4
Counter/Timer, 6-Digit, 1-Stage Preset, 72x72mm, DIN, SPDT, NPN, 100-240VAC, 50/60Hz
$169.00
Autonics

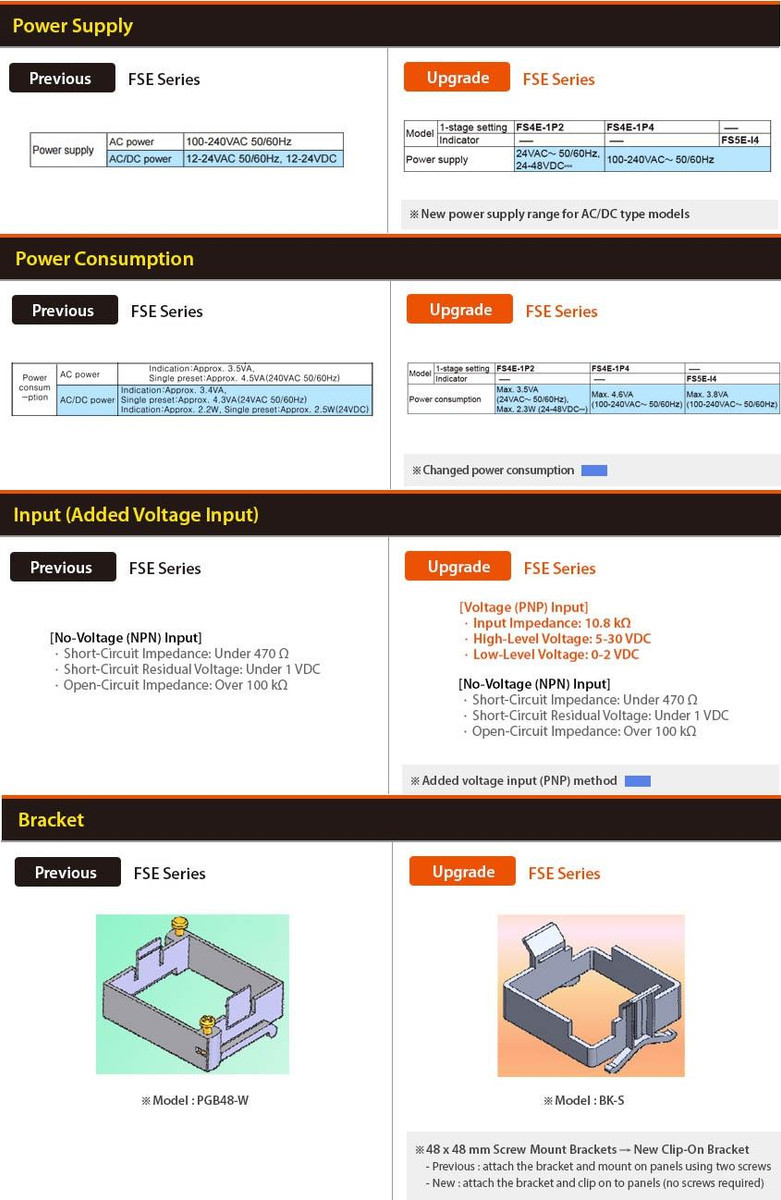

FS4E-1P4
Timer, Digital, 4-Digit, DIN, LED, Multi-Range, Relay Out, NO/NC, 100-240VAC (socket req'd)
$132.00
Autonics

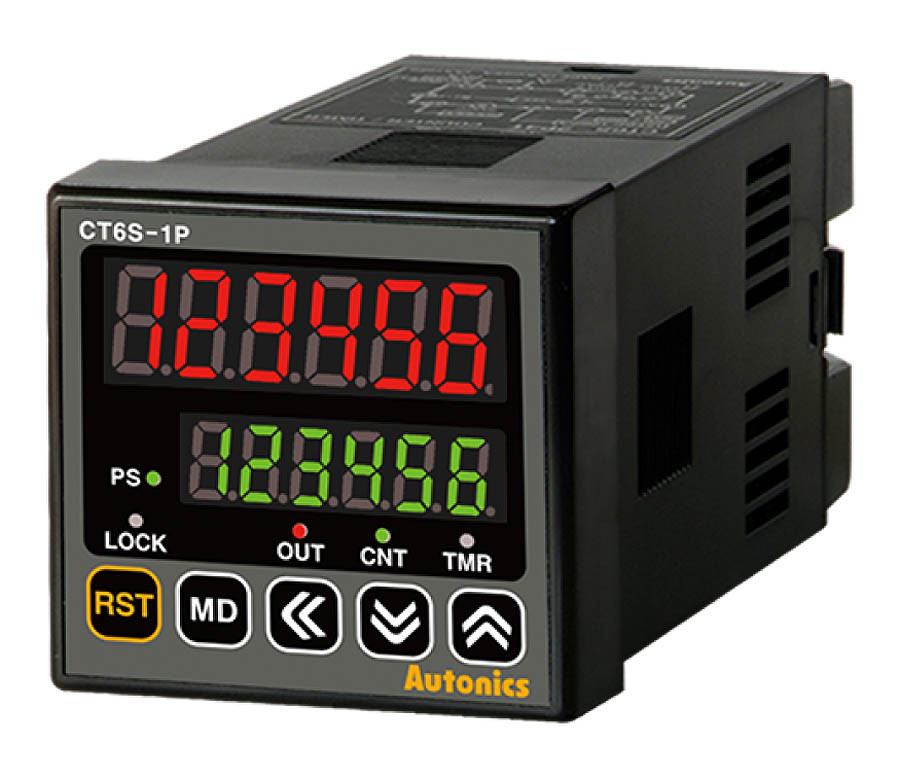

CT6S-1P4
