$95.63
13385736251
Alt: 133 8573 6251, DTS 3241
$4,449.75

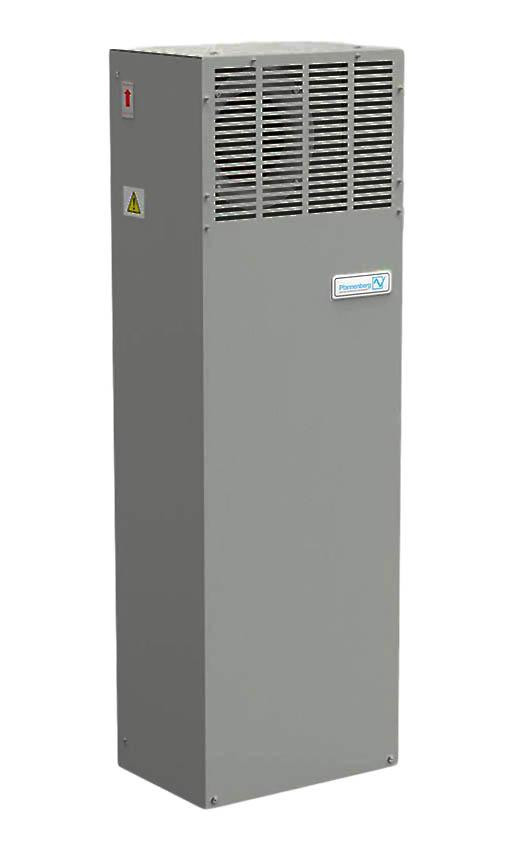

Air Conditioner, NEMA 12 Side Mount, 7000-8500 BTU, 1400W, 400/460VAC, 50/60Hz, ANSI 61 Dark Grey Powder Coated Steel, Indoor Enclosure, 2.6A Nominal Current, 5A Fuse Class CC, 73dB(A), R134a/700g, UL, cUL (Drop Ship Only Via Truck)
- Weight:
- 135.50 LBS
- Minimum Purchase:
- 1 unit
Description
We currently offer a small offering of our most popular Pfannenberg products online. Marshall Wolf Automation is an authorized Pfannenberg distributor and can get you the entire line.
Please fill out our Quick Quote form for pricing and delivery on any product you do not see online. Thank you!
Features Include:
- Compact design, ideal for small control cabinets and larger control cabinets for the cooling of hot spots
- Particularly suitable for the food industry and outdoor applications
- High protection system IP 56, maintenance-free
- NEMA 12 (DTS 3241) and 3R/4 (DTS 3261) units with powder coated steel cover
- NEMA 4/4X (DTS3281) unit with stainless steel cover
- Condenser with 3 mm fin spacing, highly effective protection against strongly contaminated ambient air
- Integrated condensate evaporation system
Technical Information:
- Pfannenberg DTS 32xx Cooling Unit Cutout
- Pfannenberg DTS 3241 | DTS 3261 | DTS 3281 115V Standard-Controller Technical Data
- Pfannenberg DTS 3241 | DTS 3261 | DTS 3281 230V Standard-Controller Technical Data
- Pfannenberg DTS 3241 | DTS 3261 | DTS 3281 400/460V Standard-Controller Technical Data
- Pfannenberg DTS 3000 Series Technical Manual
- Pfannenberg DTS Series Project Manual Guide
- Pfannenberg Thermal Management Catalog
