13383844255
Alt: 133 8384 4255, DTS 3245

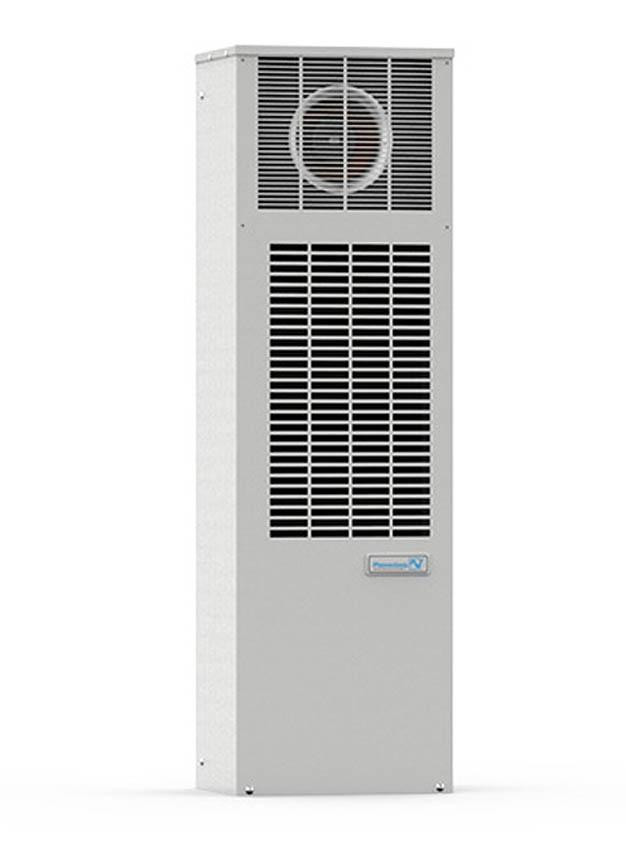

Air Conditioner, NEMA 12, 115VAC, 9000-12000 BTU, Light Gray (Cannot Ship UPS, Drop Ship Only via Truck)
- Weight:
- 150.00 LBS
- Minimum Purchase:
- 1 unit
We currently offer a small offering of our most popular Pfannenberg products online. Marshall Wolf Automation is an authorized Pfannenberg distributor and can get you the entire line.
Please fill out our Quick Quote form for pricing and delivery on any product you do not see online. Thank you!
Features Include:
ERP Efficiency Certified
- As a component of the Kyoto Protocol to reduce carbon monoxide emissions, the European Energy Related Products (ERP) Directive includes an efficiency rating for fans. Pfannenberg proudly utilizes components which adhere to these requirements.
High Airflow Backward Curve Impeller Fan
- Provides high airflow in a long lasting, single bearing design. Outperforms typical two-bearing blowers with nearly twice the lifespan.
Closed Loop Design
- Designed to isolate the external ambient air from the internally conditioned air eliminating the risk of contaminants entering the cabinet.
Thermal Overload Protection
- Compressor and fan motors are outfitted with integral temperature switches to shut down the unit in the event of excessive temperature. This increases the operating life of the compressor by preventing thermal overload trips.
Pressure Overload Protection
- High pressure cutout switch ensures safety by shutting off the compressor in the event of excessive pressure appearing in the refrigeration circuit.
Corrosion Protection
- Outdoor and washdown units have a special coating on pipes and coils on the ambient side of the unit to provide maximum protection from saltwater, sour gas, and other corrosive substances.
Environmentally Friendly
- Utilizes HFC-free R134a refrigerant versus a blended refrigerant for easier service and minimized negative impact to the environment.
Self Protected from Harsh Environments
- Our unit is uniquely designed to protect itself in NEMA 3R, 4, and 4X environments. An example of this is the location of our control electronics within our dry, cool interior circuit.
Maintenance Free, Filterless Design
- The wide fin spacing is less susceptible to clogging from dirt buildup which can cause the unit to work harder and hamper efficiency.
Active Condensate Management
- Condensation is a natural by-product of refrigeration. The heated condensate collection pan boils this off thereby eliminating the need for drain tubes and buckets.To conserve power, this heater only activates when necessary.
Hermetically Sealed Compressor
- The absence of any refrigerant fill valves eliminates leak paths. Recharging is never needed. 100% cooling capacity efficiency is ensured.
Thermal Expansion Valve
- Regulates the flow of refrigerant based on thermal demand for efficient performance over the entire operating temperature range.
High Ambient Performance
- The DTS 3000 Series Cooling Units were designed utilizing high temperature compressors and larger condensers. Both the indoor NEMA Type 12 units and outdoor units perform very well in environments that require cooling where the maximum ambient temperature is 131° F.
Rugged Design
- Powder coated steel or stainless steel cover designed for manufacturing environments. Easily painted to match enclosure or machine.
Technical Information:
- Pfannenberg DTS 32x5 Cooling Unit Cutout
- Pfannenberg DTS 3245/65/85‚ 115V/230V Standard-Controller Technical Data
- Pfannenberg DTS 3245/65/85‚ 400V/460V Standard-Controller Technical Data
- Pfannenberg DTS 3000 Series Technical Manual
- Pfannenberg DTS Series Project Manual Guide
- Pfannenberg Thermal Management Catalog
