Product image is representative only, please verify specifications.
8032301030
Alt: N323 Pt100
$74.00

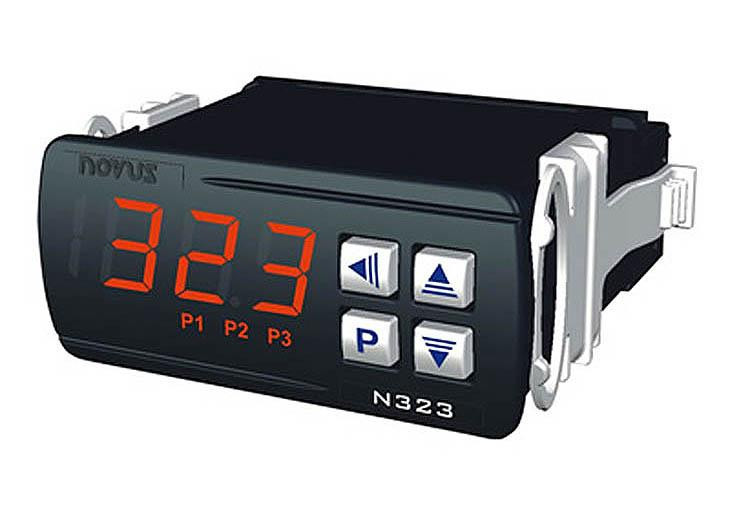

Temperature Controller, 3 Relays, Pt100, Electronic Indicators and Thermostats
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 1 unit
Description
Controller, Temperature, 3 Relays, N323 Pt100
Features Include:
- Sensor input: Pt100 (-50 to 300 °C), Thermocouple J (0 to 600 °C) or thermistor (-30 to +105°C)
- IP65 enclosure frontal protection
- Output: Relay SPDT: 1 HP 250 VAC / 1/3 HP 125 VAC (16 A Resistive) and two relays SPST-NA: 3 A / 250 VAC
- Resolution: 0,1 °C from -19.9 to 199.9 °C
- Accuracy: ± 0.5 °C / °F ±1 digit (Pt100/ Thermistor) and ±2 °C for Thermocouple
- Adjustable hysteresis
- Sampling: 1.5 per second
- Working temperature: 0 to 50 °C
- Power supply: 100-240 VAC/DC (internal) or 12-30 VAC/DC
- Digital communication via RS485 with Modbus RTU protocol(optional)
- Dimensions: 75 x 33 x 75 mm
