Available Now! 8032101014
Available Now! (1 in stock)

8032101014

Alt: N321 Pt100

$61.00

Temperature Controller, Pt100, 12-24VDC, 1 Relay, Electronic Indicators and Thermostats

Weight:
1.00 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description

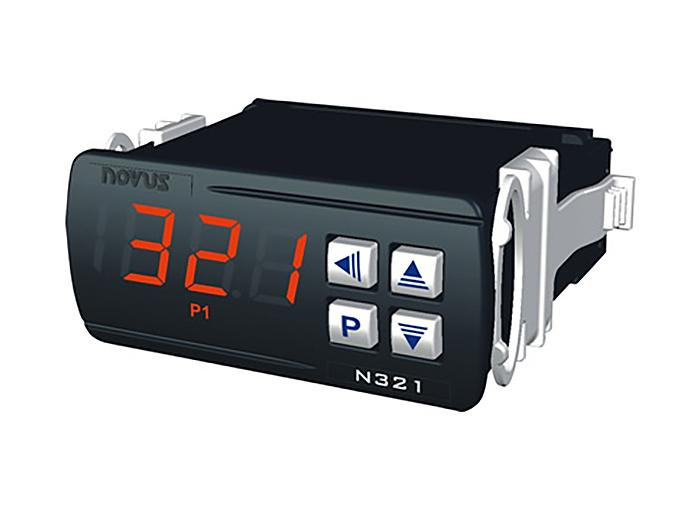

Our Novus N321 temperature controllers are available in four different sensor inputs; Pt100, Pt1000, thermocouple J or thermister (please see spec sheet or individual part numbers for sensor input).

These temperature controllers are used to measure, indicator and control temperature in a wide range of applications!

The front is IP65 and the output is relay, SPDT.



Features Include:

  • Sensor input: Pt100 (-50 to 300 °C), Thermocouple J (0 to 600 °C) or thermistor (-30 to +105°C)
  • IP65 enclosure frontal protection
  • Output: Relay SPDT: 1 HP 250 VAC / 1/3 HP 125 VAC (16 A Resistive)
  • Resolution: 0,1 °C from -19.9 to 199.9 °C
  • Accuracy: ± 0,5 °C / °F ±1 digit (Pt100 / Thermistor) and ±2 °C for Thermocouple
  • Adjustable hysteresis
  • Sampling: 1.5 per second
  • Working temperature: 0 to 50 °C
  • Power supply: 100-240 VAC (internal) or 12-24 VAC/DC
  • Digital communication via RS485 with Modbus RTU protocol (optional)
  • Dimensions: 75 x 33 x 75mm
