Available Now! 80323H6031

Product image is representative only, please verify specifications.

Available Now! (1 in stock)
Novus

80323H6031

Alt: N323-RHT

$92.00

Temperature/Humidity Controller, Need Probe Sensor (Not Included)

Weight:
1.00 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description

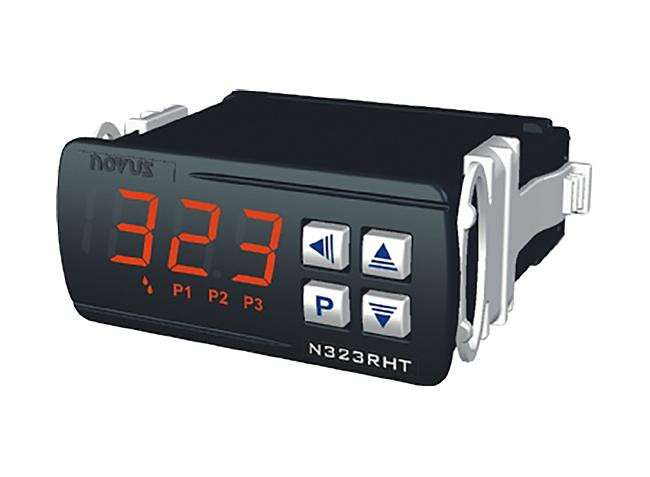

Controller, Temp & Humidity, N323-RHT

Features Include:

  • Input Sensor: Humidity measurement
  • Power Supply: Voltage: 100 to 240 VAC/DC ± 10 %, Optional: 12 to 30 VDC
  • Frequency: 50~60 Hz
  • Consumption: 5 VA
  • Dimensions (Width x Height x Depth): 75 x 33 x 75 mm
  • Panel cut-out: 70 x 29 mm
  • Range: 0 and 100 % (RH) (see Fig. 1)
  • Accuracy: See Fig. 1; Repeatability: ± 1 % RH
  • Hysteresis: ± 1 % RH
  • Linearity error: << 1 % RH
  • Stability: < 1 % RH / year
  • Response time: Around 8 s to reach 63 % of a fast input change. Valid at 25 °C and 1 m/s airflow
  • Case: Polycarbonate UL94 V-2
  • Protection: box IP42, front panel IP65, sensors capsule IP40 (sold separately)
  • Suitable wiring: Up to 4.0 mm²; RS-485 digital communication; RTU MODBUS protocol (Optional)
  • Serial interface not isolated from input circuitry
  • Input circuitry isolated from power supply, except in the 24 V powered model
  • Optional: Pulse, 5 Vdc, 25 mA max

Input Sensor: Temperature

  • Accuracy: Refer Fig. 1; Repeatability: ±0.1 °C
  • Range: -20 and 100 °C (see Fig. 1)
  • Response time: up 30 seconds in slow moving air
  • Warm - up: 15 minutes
  • Measurement Resolution: RH: 1 %
  • T: 0.1º from –19.9 to 119.9º
  • Note: the equipment keeps its precision all over the range, despite the lack of display resolution in a part of the range does not allow its visualization

Output:

  • OUTPUT1: Relay SPDT; 1 HP 250 VAC / 1/3 HP 125 VAC (16 A Res.) - Optional: Pulse, 5 VDC, 25 mA max
  • OUTPUT2: Relay: 3 A / 250 VAC, SPST-NA
  • OUTPUT3: Relay: 3 A / 250 VAC, SPST-NA
