08349005012
Alt: 8349005012
$870.78

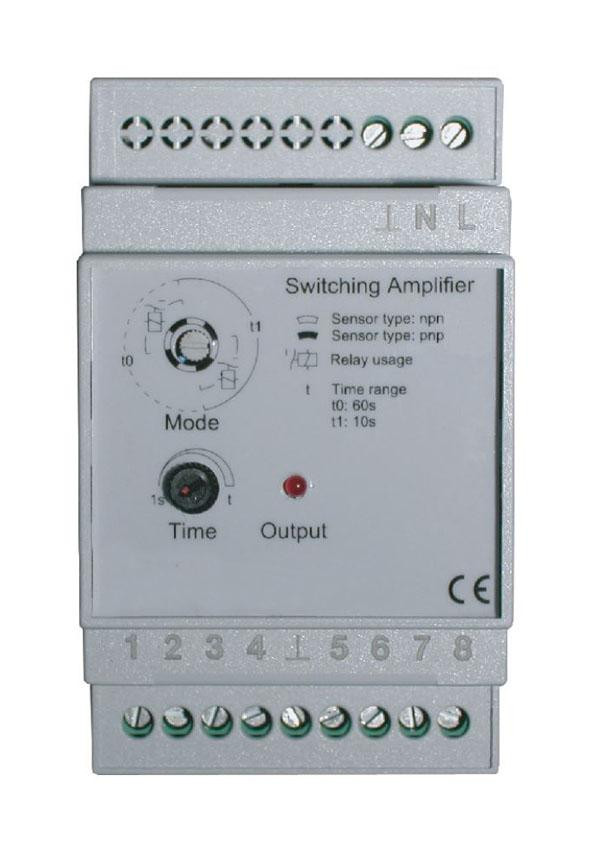

Control Unit for Flat Sensors, 1 Channel, 115VAC (50/60Hz), 24VDC, DIN Rail Mounting, IP20, Use with all Flat Pack and SP Series Sensors
- Minimum Purchase:
- 1 unit
Description
Features Include:
- Supply Voltage: 115 VAC (50/60Hz), 24 VDC
- Sensor Supply: 15VDC, max. 120mA (Overload and Short Circuit Protected)
- Transistor Output: 1 x NPN, 1 x PNP, 20mA open collector
- Relay Output: 1 x SPDT, max. 250 VAC, 5A
- Speed: 1-10/ 1-30/1-100/1-150 m/min
- Output Pulse Duration: 1 - 60s
- Protection Class: IP54/IP20
- Housing Material: Steel
- Panel or DIN Rail Mount
- For Use with all Flat Pack and SP Series Sensors
- Universal Supply Voltage 110-250VAC
- Operation with 24VDC
- Transistor and Relay Output
