Available Now! PH250MLI
Available Now! (2 in stock)

PH250MLI

Alt: Optional Primary Fuse Kit: PFK6 (Sold Separately)

$154.00

Control Transformer, 250VA, 2.17/10.42A, Primary: 460/230/208; Secondary: 115/24:Specs have more Info

Weight:
12.63 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
This is a machine tool rated control transformer and has a lifetime warranty!
Description

HPS Imperator is a machine tool rated industrial control transformer.

This series was designed to meet high inrush industrial applications that use electromagnetic components such as relays, solenoids and magnetic motor straters.

With 11 standard voltage groups, a VA range from 50VA to 1500VA and available with standard secondary and optional primary fuse kits, the HPS Imperator® series provides the perfect solution for any application.

The HPS Imperator’s unique terminal block design allows for the quick and easy installation of standard secondary or optional primary 13/32″ x 1 1/2″ midget/type CC fuse clips on every unit.  This is the simplest and most inexpensive fusing installation provided on any industrial control transformer in the market today.

This series has a lifetime warranty.

Marshall Wolf Automation is your authorized Hammond Power Solutions distributor.

Features Include:

  • 600V class, rated industrial control transformers
  • 11 standard multi primary and secondary voltage groups available1
  • 50/60 Hertz (60Hz on PH***AJ & PH***AR)
  • Robust insulation system:
    • 50-150VA, temperature rise 55°C, insulation class 130°C
    • 250-1500VA, temperature rise 80°C, insulation class 130°C
  • Constructed with high quality silicon steel laminations that provide optimum performance and reliability
  • Encapsulated coils encased in a custom injection molded cover, protect coils and terminations from moisture,
    dirt and other industrial airborne contaminants
  • Mounting Feet: made of heavy steel and welded or bolted to the core, these mounting feet provide superior strength in a compact design
  • Termination: combination slot/Phillips #6 screw, complete with SEMS washer (suitable for 18 AWG to 14 AWG solid or 14 AWG stranded wire)
  • Standard SEMS washers - supplied on all units2

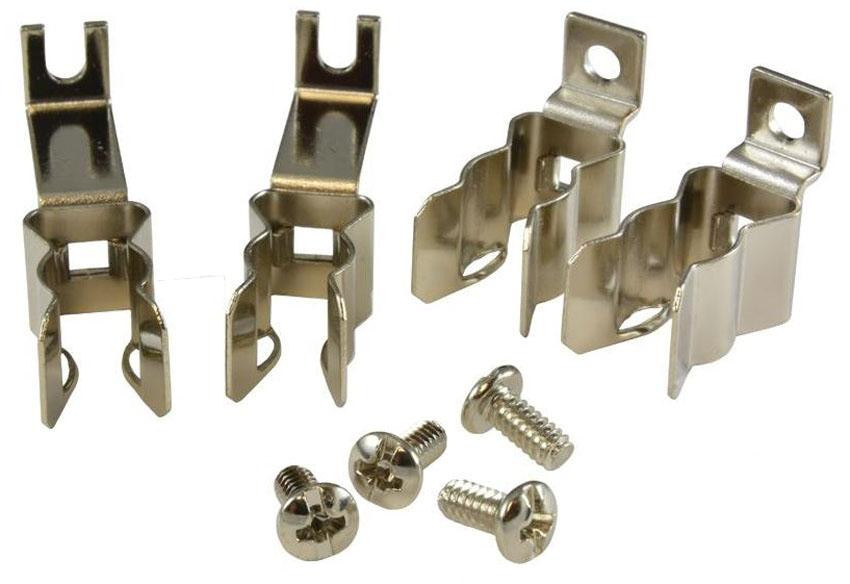

  • Standard secondary fuse kits -utilizing 13/32” x 1 1/2” midget/type CC fuse clips (supplied with all units)
  • Optional primary fuse kits available utilizing 13/32” x 1 1/2” midget/type CC fuse clips
  • Optional finger safe terminal covers available on all units
