A3092025
Alt: SILFLEX Series
$6.88

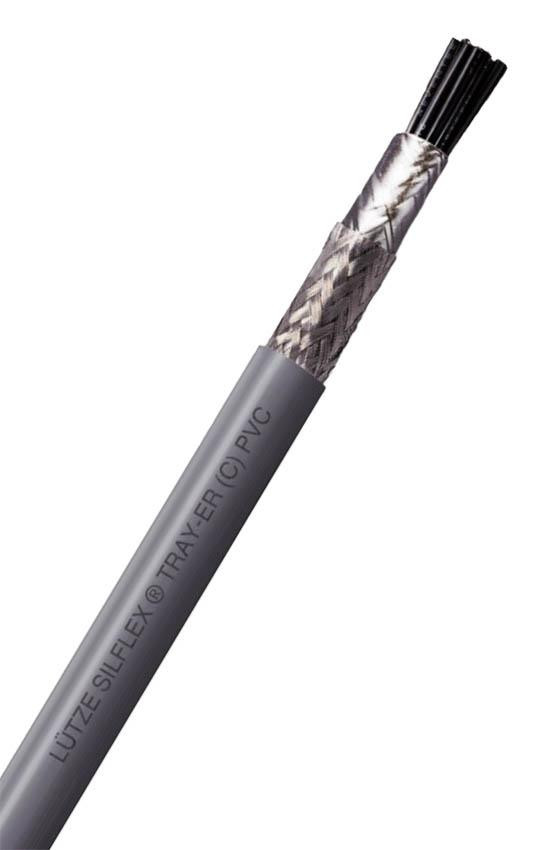

Control Cable: AWG20/25C UL/PLTC-ER/ITC-ER/CE/MTW, Flexible PVC Control Tray, Shielded, Sold/Price per Foot
- Weight:
- 1.25 LBS
- Minimum Purchase:
- 1 unit
Description
The Lutze SILFLEX® A309 series is a multi-conductor flexible cable for tray and control applications. This series has exposed run (open wiring) approval and is compliant with NFPA 79 requirements.
**Please note: a $75 minimum may apply on cable cut to length.
Ideal for machine tools, machine/plant construction, HVAC, production lines and many other industrial applications. This series can be used in dry, damp or wet locations!
Approvals: UL/TC-ER-JP/WTTC/ITC-ER/PLTC-ER/MTW/CE
What do those mean?
- TC-ER-JP is for use on machines and in cable tray without conduit. This can reduce material and labor costs on AWG 18 and larger
- WTTC - wind turbine tray cable rating for use in wind power generation (AWG 18 and larger)
- PLTC-ER - power limited tray cable exposed run
- ITC-ER - instrumentation tray cable
Features Include:
- Flexible wires with nylon for better resistance to pressure and impacts as per UL 1277
- Easy stripping and fast installation
- Very flexible flexibility for complex installation distances and small bending radii
- Improved oil resistance due to specifically developed PVC jacket
- Sunlight-resistant
- "Direct burial" for installation in the ground
- Silicone free
- RoHS compliant
- Temperature Range Fixed: -40°C - +90°C
- Number of conductors/cross-section: (25×AWG20)
- Jacket material: PVC
- Jacket color: grey RAL 7001
- Outer Ø: 15.7 mm
- Outer Ø: 0.62 inches
- Weight: 36.6/100 m kg/100 m
Rated Voltage:
- 600 V UL MTW
- 300 V UL PLTC-ER
