22118300009
Pfannenberg

22118300009

Alt: 221 1830 0009, BR50 Series Stacklight™

$231.00

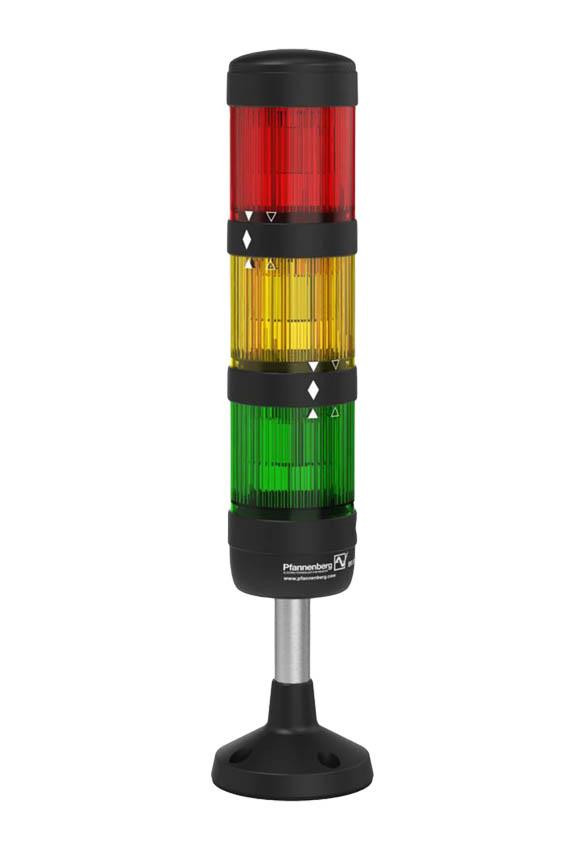

Continuous Stacklight™, 24VAC/DC, Green, Yellow, Red, 3.9" Pole with Base Mount, Pre-Configured Complete Light Tower

Weight:
1.40 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Ultra bright; same great design but up to 10,000% brighter!
Description

The Pfannenberg BR50 Stacklight™ is packed with features you will love:

  • Same great design but up to 10,000% brighter!
  • Availalbe pre-assembled or you can customize your stacklight
  • Replaceable LED modules determine the signaling mode (continuous or blinking light) - standard modules are continuous
  • IP54 indoor version can easily be upgraded to IP65 outdoor/washdown applications with optional o-rings (module gasket IP65, BR50-MG, Pole gasket IP65, BR50-TG)
  • Up to 5 modules can be stacked with 6 different lens colors, can also uses Xenon flashing  light or an audible module (28250081600)
  • Pole mount/tube stand or bracket with various lengths or direct to enclosure
  • Twist and lock makes configuration and assembly quick and easy
  • Easy integration into an AS-Interface bus system is possible with separate module, 230VAC only (BR50-AS-I/28250148300)
  • Self-monitoring module; integrated functional fault monitoring with redundant LED array and dry contact relay supports automatic switchover to secondary LED and remote falult notification



Series Features Include:

  • Ultra bright and super slim – Excellent perceptibility and slim design (ø 54 mm).
  • Signaling mode determinable by LED – Replaceable LEDs determine the signaling mode (continuous or blinking light). The standard modules are already equipped with continuous light LEDs.
  • Individual configuration – Up to 5 modules can be combined at any time. In addition to various LED light modules, Xenon flashing light modules, or an audible module can also be installed.
  • Easy assembly – The flexible modular system enables an easy assembly of the desired modules by bayonet lock.
  • Flexible design options – Fully Colored or Crystal Clear modules with colored LEDs - the choice is yours. Assemble your individual signal tower according to your needs and design ideas.
  • Versatile mounting options – Can either be mounted by tubular stand with plinth, tube, mounting bracket or directly.
  • Universally applicable – Usable indoors and outdoors.
  • Function-monitored – Separate LED module for more safety in sensitive applications where a signal must be sent to an external safety system, operating station or control centre in the event of a malfunction.
  • Fieldbus connection – Easy integration into an AS-Interface bus system is possible with a separate module.
