Weg
CWB110-11-30E04

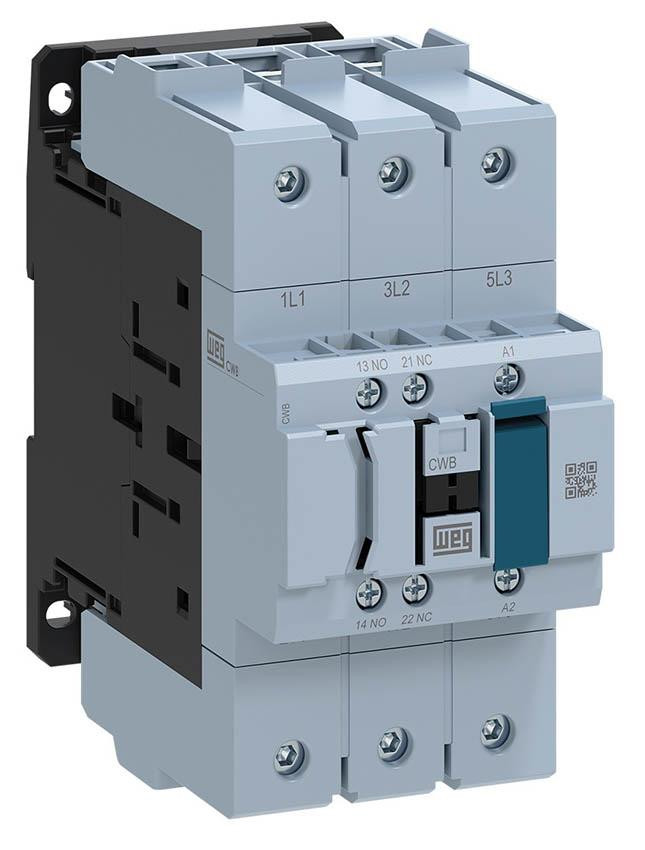

IEC Contactor, 110 Amp (110A), 1NO/1NC Auxiliary Contacts, 3NO, 24-60VDC, Screw Terminal, UL508
$214.50
CWB95-11-30E04
Alt: 15477392
$175.50
IEC Contactor, 95 Amp (95A), 1NO/1NC Auxiliary Contacts, 3NO, 24-60VDC, Screw Terminal, UL508
- Weight:
- 4.00 LBS
- Minimum Purchase:
- 1 unit
Description
Our WEG CWB series of IEC contactors offer:
- Built-in auxiliary contacts 1NO + 1NC
- Compact, 45mm wide up to 38 amp
- UL 508, IEC 60947 - meets the requirements for a wide range of industrial applications!
- Easy access to power and control terminals
- Wide range of voltages available in only two coil versions - one for AC and one for DC that fit the entire 9 to 38 amp range
- 2023 now available in 95, 110 and 125 amp!
- Zero-width mechanical interlock for applications that require them
- Compact and easy mounting without needing any tools
- Overload relays for this series are RW27-2D, they can be directly mounted on the CWB contactors for easy connection to the motor
Specifications
Alternate Part Number
15477392
Amp Rating
95 Amp
Coil Voltage
24V Coil
Motor Control Type
IEC Contactors
Horsepower
See Spec
Poles
3 Pole
All - Specific Ratings
UL508
Series
CWB Series
Options
No Special Options
Terminal Type
Screw Terminals
All - Voltage
60VDC
Warranty
18 Months
Weight
4
