Weg
CWB110-11-30D39

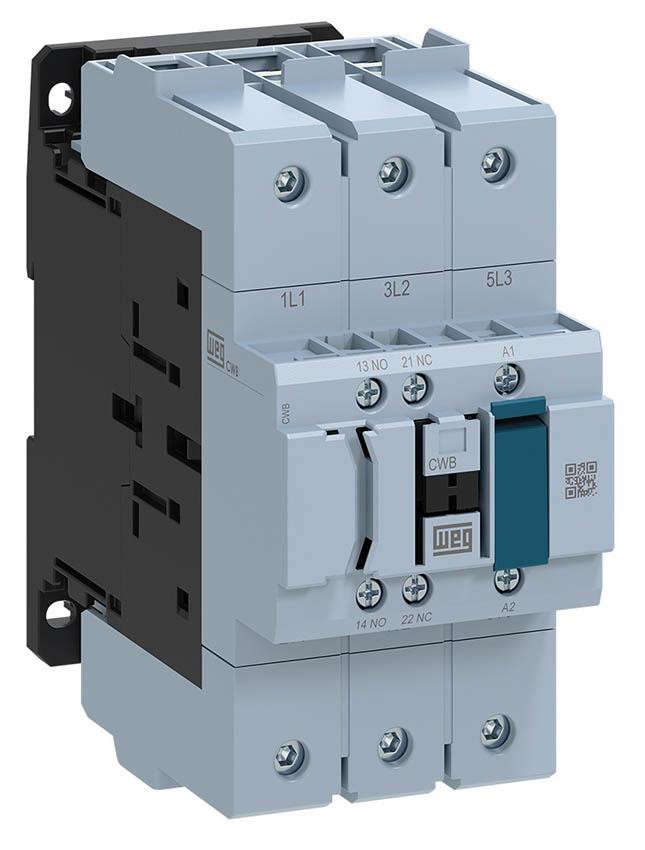

IEC Contactor, 110 Amp (110A), 1NO/1NC Auxiliary Contacts, 3NO, 480VAC, 50/60Hz, Screw Terminal, UL508
$163.80
CWB110-11-30D02
Alt: 15257933
$163.80
IEC Contactor, 110 Amp (110A), 1NO/1NC Auxiliary Contacts, 3NO, 24VAC, 50/60Hz, Screw Terminal, UL508
- Weight:
- 4.00 LBS
- Minimum Purchase:
- 1 unit
Description
Our WEG CWB series of IEC contactors offer:
- Built-in auxiliary contacts 1NO + 1NC
- Compact, 45mm wide up to 38 amp
- UL 508, IEC 60947 - meets the requirements for a wide range of industrial applications!
- Easy access to power and control terminals
- Wide range of voltages available in only two coil versions - one for AC and one for DC that fit the entire 9 to 38 amp range
- 2023 now available in 95, 110 and 125 amp!
- Zero-width mechanical interlock for applications that require them
- Compact and easy mounting without needing any tools
- Overload relays for this series are RW27-2D, they can be directly mounted on the CWB contactors for easy connection to the motor
