CWB9-11-30D15

CWB9-11-30D15

Alt: 12945217

$29.25

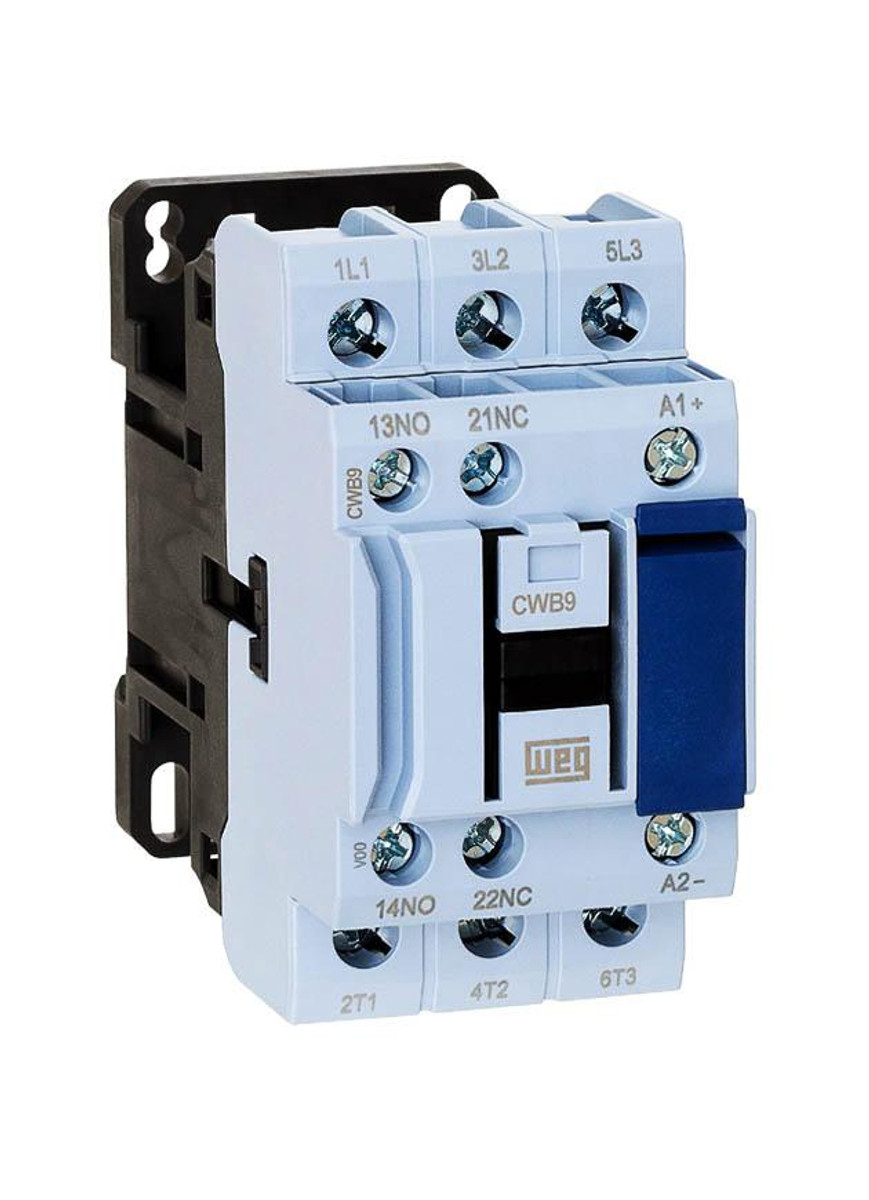

IEC Contactor, 9 Amp (9A), 1NO/1NC Auxiliary Contacts, 3NO, 120VAC, 50/60Hz, Screw Terminal, UL508

Weight:
1.00 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description

WEG CWB series of IEC contactors offer:

  • Built-in auxiliary contacts 1NO + 1NC
  • Compact, 45mm wide up to 38 amp
  • UL 508, IEC 60947
  • Easy access to power and control terminals
  • Wide range of voltages available in only two coil versions - one for AC and one for DC that fit the entire 9 to 38 amp range
  • Zero-width mechanical interlock for applications that require them
  • Overload relays for this series are RW27-2D, they can be directly mounted on the CWB contactors for easy connection to the motor

Features Include:

  • Control Voltage: 120V 50/60Hz
  • Rated current In - AC-3 (Ue ≤ 440 V): 9A
  • Rated operational voltage Ue - IEC 60947-4-1: 690 V
  • Main contact: 3 NO
  • Height: 78.4 mm (3.09 in)
  • Width: 45 mm (1.77 in)
  • Depth: 86.9 mm (3.42 in)
  • “Zero-Width” Mechanical Interlock
  • Simple and Compact Mounting of Surge Suppressor Blocks
  • Contactor Coil Operated on AC or DC
  • Simple and Organized Control Circuits
  • Additional Contact Blocks
  • Easy Access Power and Control Terminals
