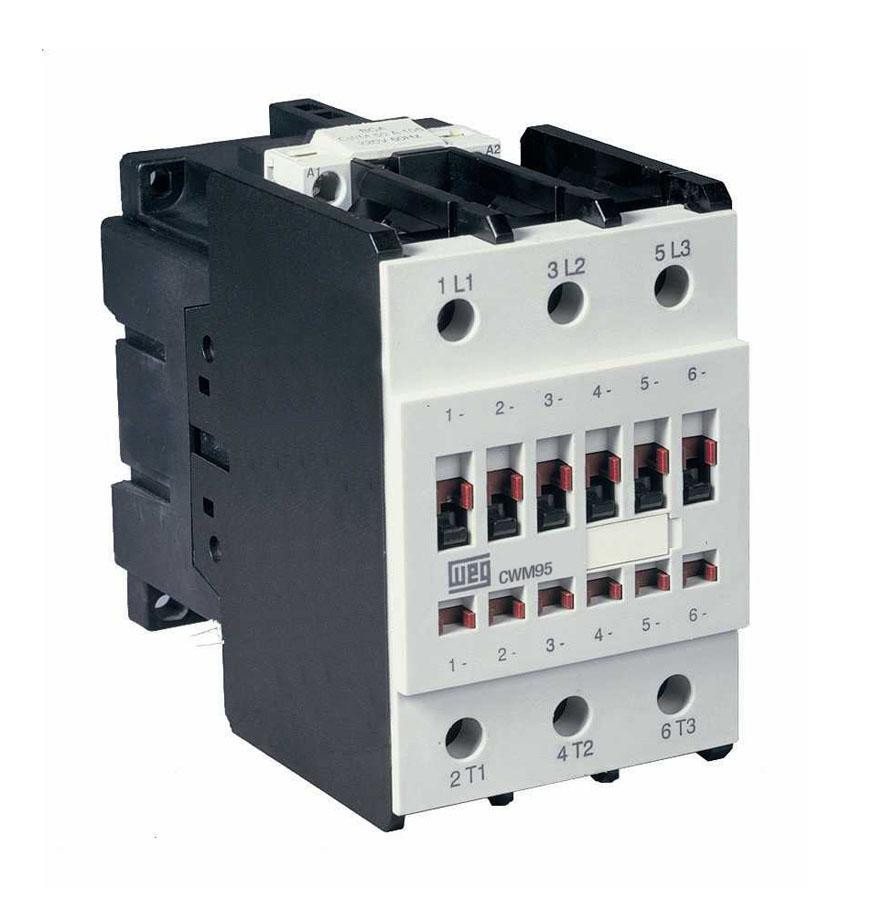

CWM95-11-30V18

Product image is representative only, please verify specifications.

Weg

CWM95-11-30V18

Alt: Available Only While Supplies Last!

$161.25

Contactor, IEC, 95 Amps, 1NO/1NC, 120VAC, Buy CWMxx-00-xxxxx & Contact Blk Separately

Weight:
3.26 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description

Features Include:

  • Control voltage: 110V 50Hz/120V 60Hz
  • Rated current In - AC-3 (Ue ≤ 440 V): 95 A
  • Main contact: 3 NO
  • Rated operational voltage Ue - IEC 60947-4-1: 1000 V
  • Rated operational voltage Ue - UL/CSA: 600 V
  • Height: 117 mm (4.61 in)
  • Width: 75 mm (2.95 in)
  • Depth: 126 mm (4.96 in)
  • Panel mountable or 35mm DIN Rail up to the CWM105 Series
  • Front and Side Mounting Auxiliary Contacts
  • Finger-Touch IP20 Protection
  • Wide Coil Voltage Protection AC or DC
  • Mirror Contacts for “Safety-Related” Applications
  • Mechanically linked Auxiliary Contacts
