CWB80-11-30V24
Alt: 13860256
$105.30
IEC Contactor, 80 Amp (80A), 1NO/1NC Auxiliary Contacts, 3NO, 208-240VAC, Screw Terminal, UL508
- Weight:
- 2.01 LBS
- Minimum Purchase:
- 1 unit
Description
WEG CWB series of IEC contactors offer:
- Built-in auxiliary contacts 1NO + 1NC
- Compact, 45mm wide up to 38 amp
- UL 508, IEC 60947
- Easy access to power and control terminals
- Wide range of voltages available in only two coil versions - one for AC and one for DC that fit the entire 9 to 38 amp range
- Zero-width mechanical interlock for applications that require them
- Overload relays for this series are RW27-2D, they can be directly mounted on the CWB contactors for easy connection to the motor
Features Include:
- Main Contacts (power): 1 NO + 1 NC
- Control Voltage: 208-240VAC
- Isolation Voltage Ui: 690/600 V
- Number of Main Contacts: 3 NO
- Rated Current In - AC - 3 (Ue ≤ 440 V): 80A
- Rated impulse withstand voltage Uimp: 6 kV
- Degree of Protection (IEC 60529) - Main Terminals: IP10
- Degree of Protection (IEC 60529) - Coils and auxiliary contacts: IP20
- Operation Temperature Ratings: -25 °C - +55 °C
- Storage Temperature Ratings: -55 °C - +80 °C

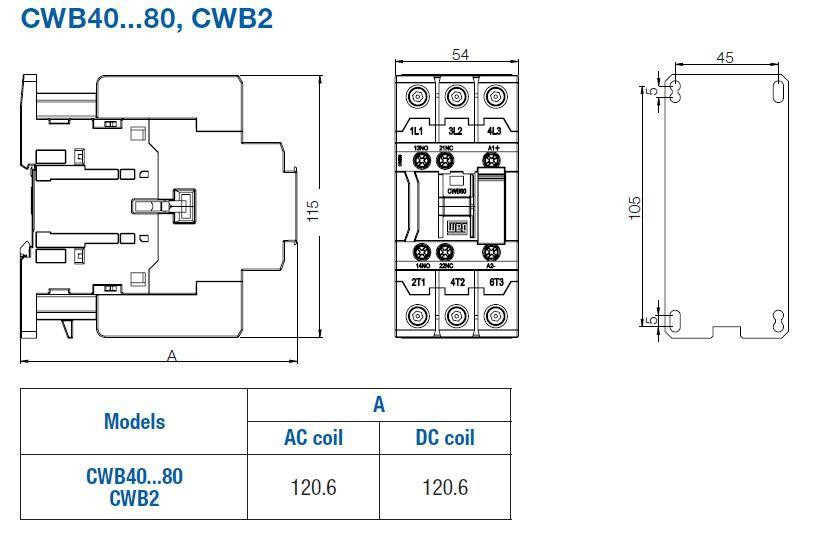

Dimensions:
- Height: 115 mm (4.53 in)
- Width: 54 mm (2.13 in)
- Depth: 120.7 mm (4.75 in)
