CWM800-22-30E39
CWM800-22-30E39
CWM800-22-30E39
CWM800-22-30E39

Product image is representative only, please verify specifications.

Weg

CWM800-22-30E39

Alt: 11747436

$2,807.90

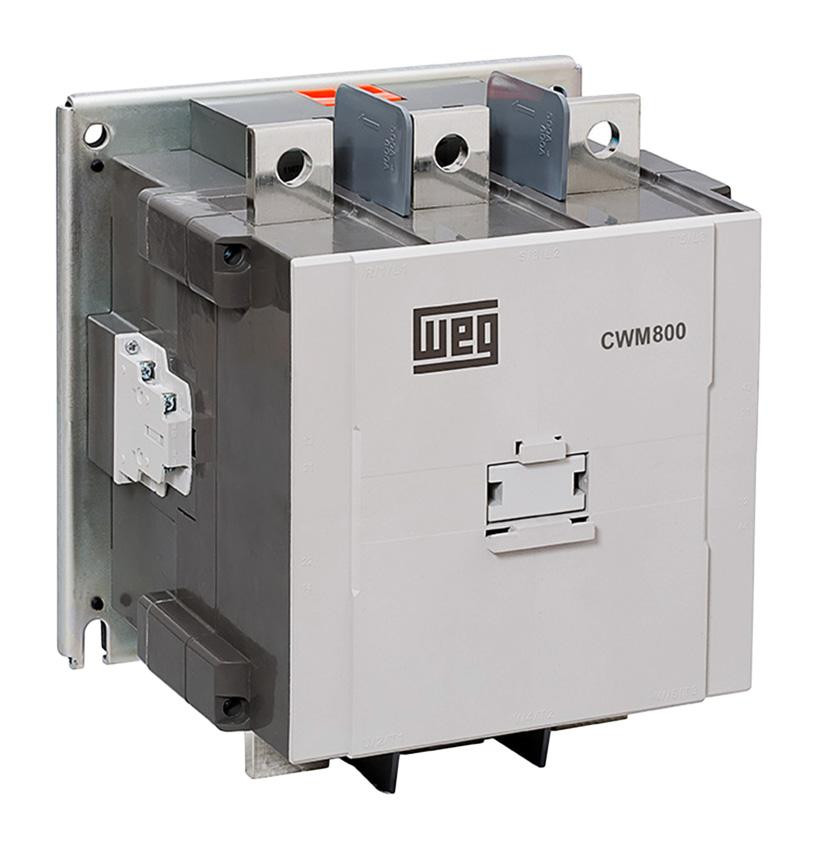

Contactor, IEC, 800 Amps, 2NO/2NC, 200-240VAC/DC, 3-Pole, UL508, Use RW Overload Relay

Weight:
56.90 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
CWM800-22-30E39
CWM800-22-30E39
CWM800-22-30E39
CWM800-22-30E39
CWM800-22-30E39
CWM800-22-30E39
Description

Features Include:

  • Control voltage: 200-240V 50/60Hz/200-220V DC
  • Rated current In - AC-3 (Ue ≤ 440 V): 800 A
  • Main contact: 3 NO
  • Rated operational voltage Ue - IEC 60947-4-1: 1000 V
  • Rated operational voltage Ue - UL/CSA: 600 V

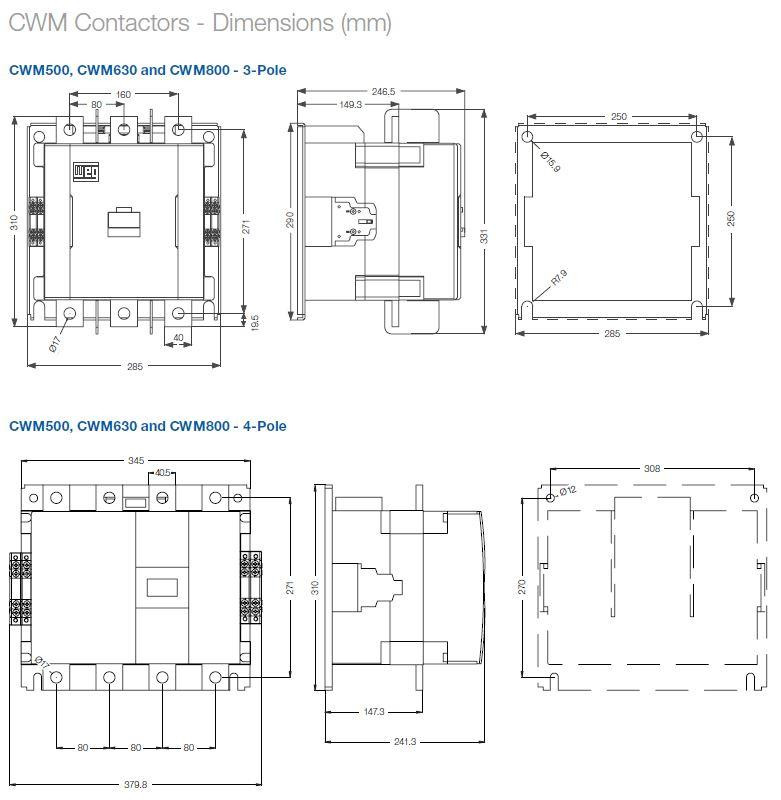

  • Height: 310 mm (12.20 in)
  • Width: 345 mm (13.60 in)
  • Depth: 246.5 mm (9.70 in)
  • Front and Side Mounting Auxiliary Contacts
  • Finger-Touch IP20 Protection
  • Wide Coil Voltage Protection AC or DC
  • Mirror Contacts for “Safety-Related” Applications
  • Mechanically linked Auxiliary Contacts
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Add Selection to Cart
CWM800-22-30E35

Weg

CWM800-22-30E35

Contactor, IEC, 800 Amps, 2NO/2NC, 100-127VAC/DC, 3-Pole, UL508, Use RW Overload Relay

$2,807.90
CWM800-22-30D82

Weg

CWM800-22-30D82

Contactor, IEC, 800 Amps, 2NO/2NC, 440-575VAC, 3-Pole, UL508, Use RW Overload Relay

$2,807.90
CWM630-22-30E39

Weg

CWM630-22-30E39

Contactor, IEC, 630 Amps, 2NO/2NC, 200-240VAC/DC, 3-Pole, UL508, Use RW Overload Relay

$1,917.80
SPT0/22

Teco Westinghouse

SPT0/22

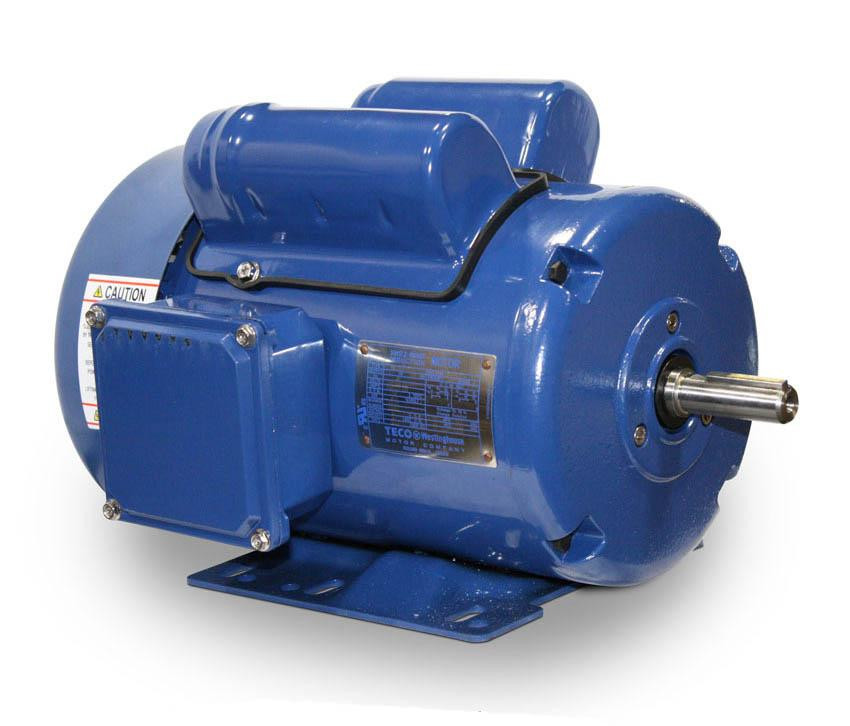

Motor, Single Phase, .25hp, 3600rpm, 115/208/230V, 48 Frame, TEFC, HVAC, NEMA Premium, IP44

$217.14
GH0/22

Teco Westinghouse

GH0/22

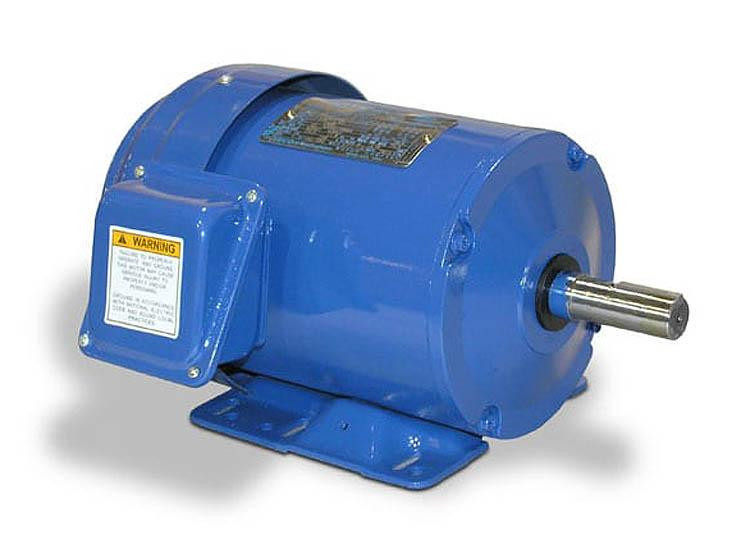

Motor, .25hp, 3600rpm, 56 Frame, 0.79 FL Amps (230V), Rigid Base Mount
