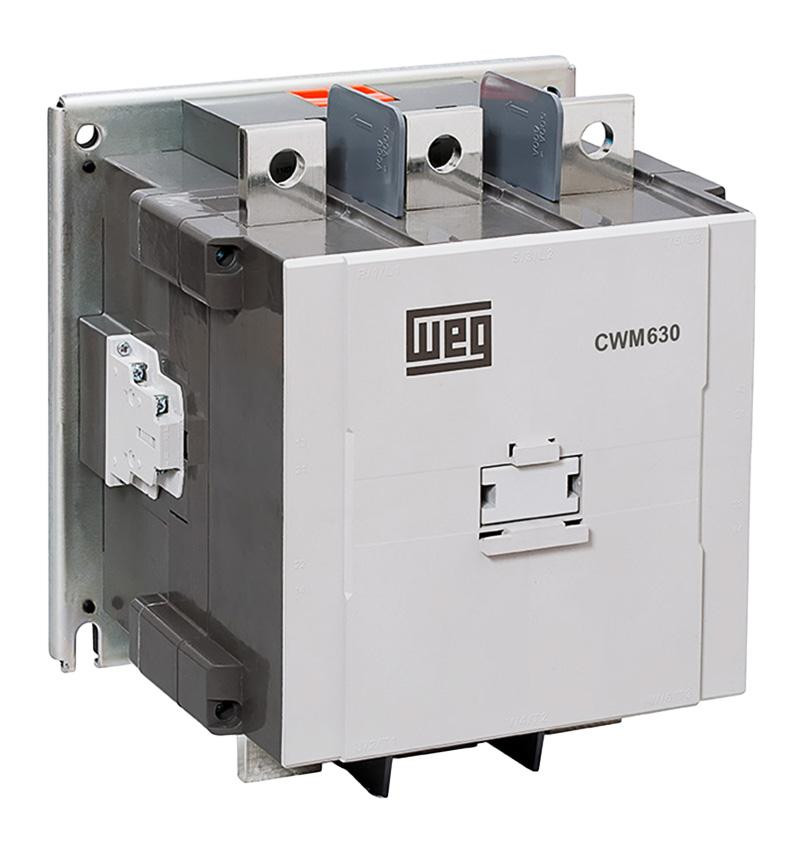

CWM630-22-30E35
Alt: 11747430
$1,917.80
Contactor, IEC, 630 Amps, 2NO/2NC, 100-127VAC/DC, 3-Pole, UL508, Use RW Overload Relay
- Weight:
- 56.90 LBS
- Minimum Purchase:
- 1 unit
Build Your Complete VFD Solution
Create a complete system with recommendations on AC drives and compatible components like motors, circuit breakers, and protection equipment.
Specifications
Alternate Part Number
11747430
Amp Rating
630 Amp
Coil Voltage
120V Coil
Motor Control Type
IEC Contactors
Horsepower
See Spec
Poles
3 Pole
All - Specific Ratings
IP20 Rated, UL508
Series
CWM Series
Options
No Special Options
Terminal Type
Screw Terminals
All - Voltage
110-125V AC/DC
Warranty
18 Months
Weight
56.9
Features Include:
- Control voltage: 100-127V 50/60Hz/100-110V DC
- Rated current In - AC-3 (Ue ≤ 440 V): 630 A
- Main contact: 3 NO
- Rated operational voltage Ue - IEC 60947-4-1: 690 V
- Rated operational voltage Ue - UL/CSA: 600 V

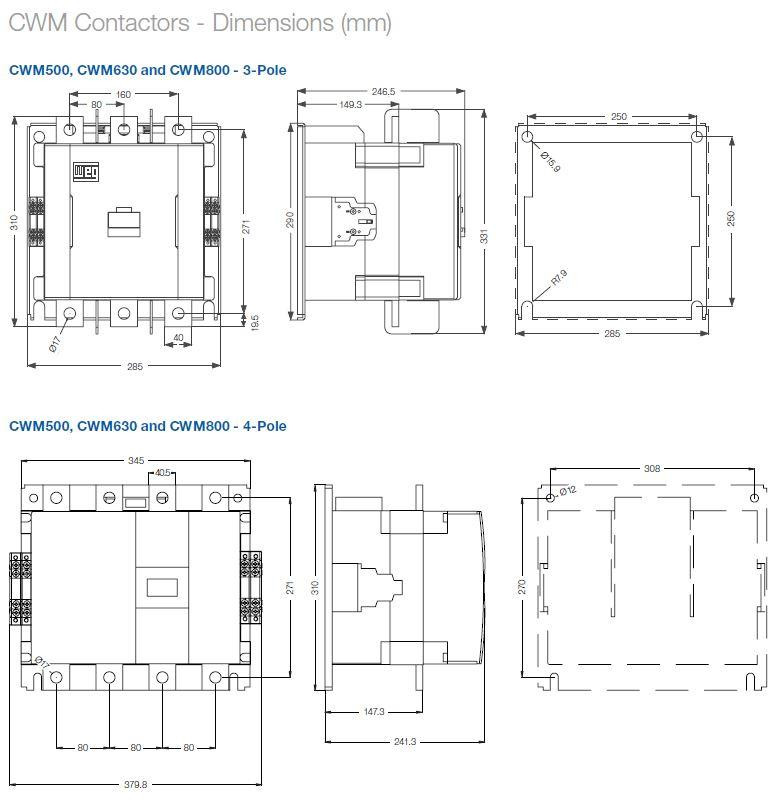

- Height: 310 mm (12.20 in)
- Width: 345 mm (13.60 in)
- Depth: 246.5 mm (9.70 in)
- Front and Side Mounting Auxiliary Contacts
- Finger-Touch IP20 Protection
- Wide Coil Voltage Protection AC or DC
- Mirror Contacts for “Safety-Related” Applications
- Mechanically linked Auxiliary Contacts
