Weg
CWB50-11-30D39
IEC Contactor, 50 Amp (50A), 1NO/1NC Auxiliary Contacts, 3NO, 480VAC, 50/60Hz, Screw Terminal, UL508
$87.75
Product image is representative only, please verify specifications.
CWB50-11-30D02
Alt: 13851363
$87.75
IEC Contactor, 50 Amp (50A), 1NO/1NC Auxiliary Contacts, 3NO, 24VAC, 50/60Hz, Screw Terminal, UL508
- Weight:
- 2.01 LBS
- Minimum Purchase:
- 1 unit
Description
WEG CWB series of IEC contactors offer:
- Built-in auxiliary contacts 1NO + 1NC
- Compact, 45mm wide up to 38 amp
- UL 508, IEC 60947
- Easy access to power and control terminals
- Wide range of voltages available in only two coil versions - one for AC and one for DC that fit the entire 9 to 38 amp range
- Zero-width mechanical interlock for applications that require them
- Overload relays for this series are RW27-2D, they can be directly mounted on the CWB contactors for easy connection to the motor
Features Include:
- Main Contacts (power): 1 NO + 1 NC
- Control Voltage: 208-240VAC
- Isolation Voltage Ui: 690/600 V
- Number of Main Contacts: 3 NO
- Rated Current In - AC - 3 (Ue ≤ 440 V): 50A
- Rated impulse withstand voltage Uimp: 6 kV
- Degree of Protection (IEC 60529) - Main Terminals: IP10
- Degree of Protection (IEC 60529) - Coils and auxiliary contacts: IP20
- Operation Temperature Ratings: -25 °C - +55 °C
- Storage Temperature Ratings: -55 °C - +80 °C
Dimensions:
- Height: 115 mm (4.53 in)
- Width: 54 mm (2.13 in)
- Depth: 120.7 mm (4.75 in)
Need More Information?
Learn more about Contactors, Starters & Overload Relays here!
Accessories
Available Now!
Available Now!
Available Now!
Available Now!
Available Now!
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Weg
CWB80-11-30D02
IEC Contactor, 80 Amp (80A), 1NO/1NC Auxiliary Contacts, 3NO, 24VAC, 50/60Hz, Screw Terminal, UL508
$105.30
Weg

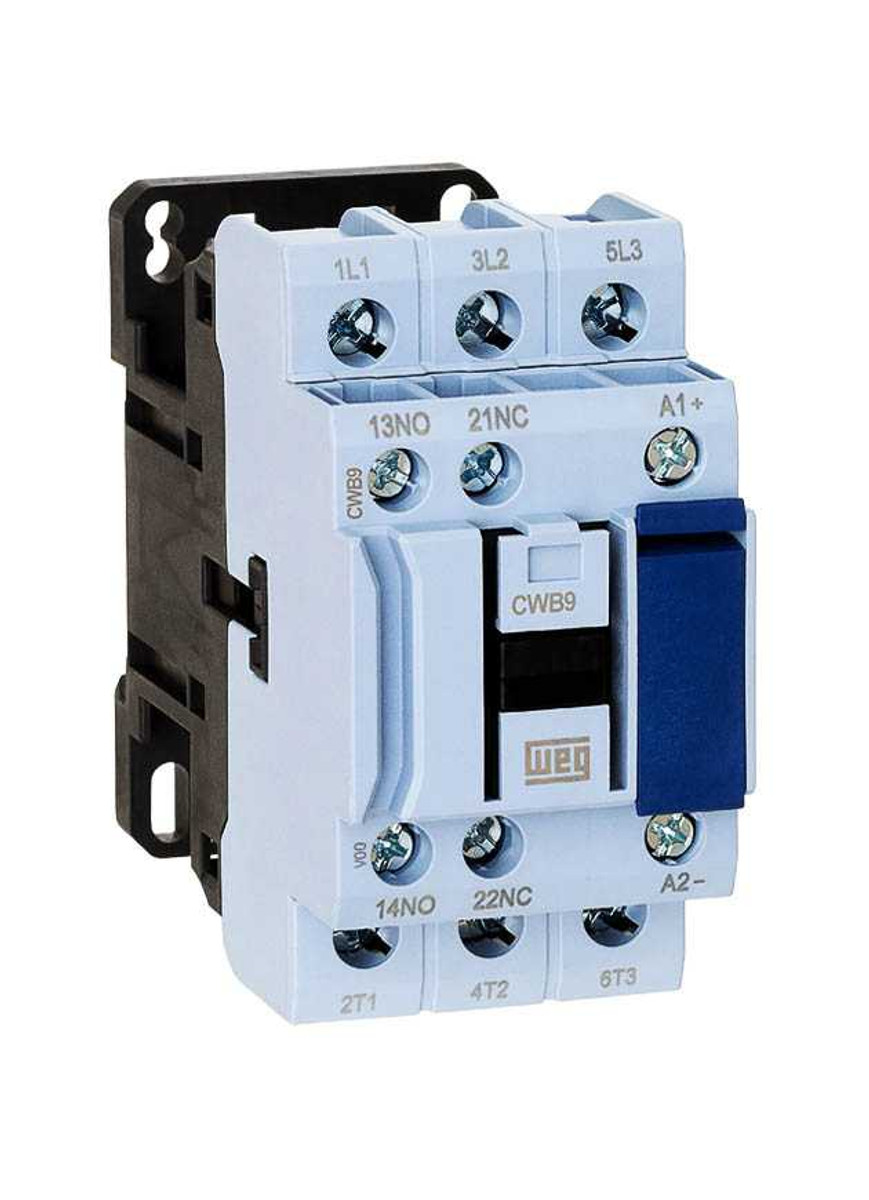

CWB9-11-30D02
IEC Contactor, 9 Amp (9A), 1NO/1NC Auxiliary Contacts, 3NO, 24VAC, 50/60Hz, Screw Terminal, UL508
$29.25
Weg
CWB50-11-30V24
IEC Contactor, 50 Amp (50A), 1NO/1NC Auxiliary Contacts, 3NO, 208-240VAC, Screw Terminal, UL508
$87.75
Weg
CWB50-11-30C03
IEC Contactor, 50 Amp (50A), 1NO/1NC Auxiliary Contacts, 3NO, 24VDC, Screw Terminal, UL508
$120.90
Weg
CWB50-11-30D15
IEC Contactor, 50 Amp (50A), 1NO/1NC Auxiliary Contacts, 3NO, 120VAC, 50/60Hz, Screw Terminal, UL508
$87.75
Weg
CWB18-11-30D02
IEC Contactor, 18 Amp (18A), 1NO/1NC Auxiliary Contacts, 3NO, 24VAC, 50/60Hz, Screw Terminal, UL508
$40.17
Weg
CWB110-11-30D02
IEC Contactor, 110 Amp (110A), 1NO/1NC Auxiliary Contacts, 3NO, 24VAC, 50/60Hz, Screw Terminal, UL508
$163.80
Weg

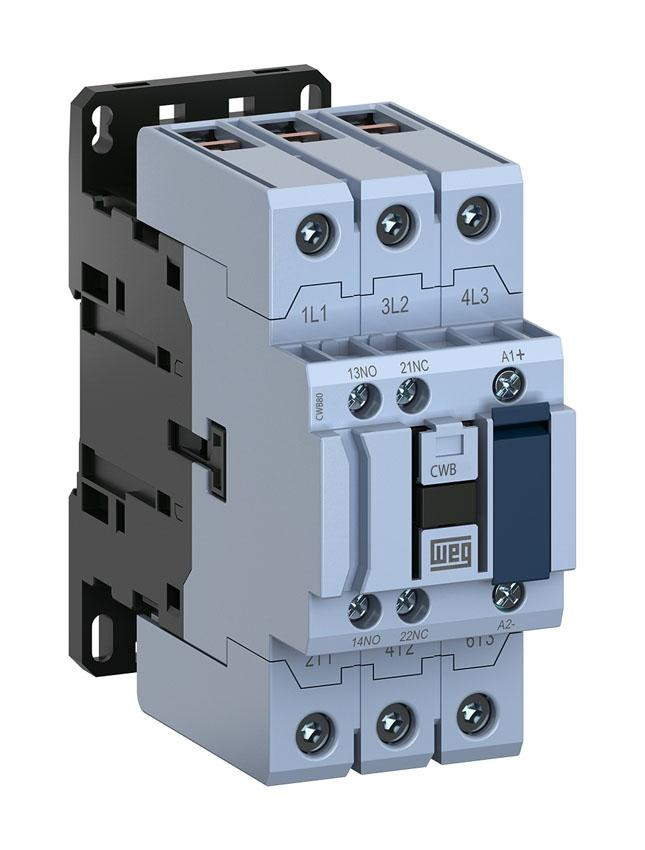

CWB40-11-30D02
