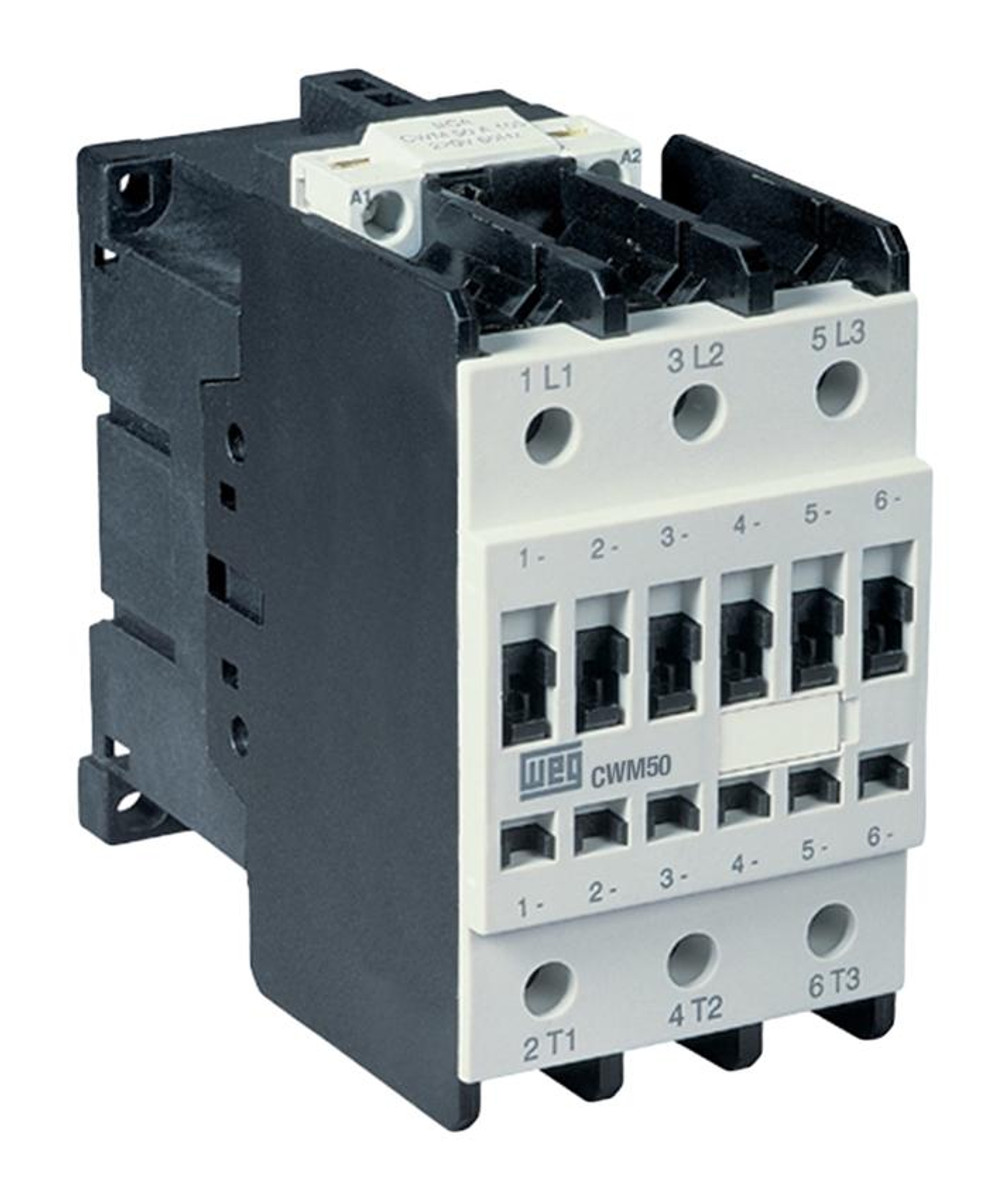

Our WEG CWM Series of IEC contactors were designed as a general purpose contactor that can handle the high demands and needs for high reliability.
They are rated for inductive loads up to 800 AMPS @ 460V. CWM Contactors are compact in frame size allowing for optimization of valuable internal space within electrical enclosures.
Standard Features
• Panel mountable or 35mm DIN Rail up to the CWM105 Series
• Front and Side Mounting Auxiliary Contacts
• Finger-Touch IP20 Protection
• Wide Coil Voltage Protection AC or DC
• Mirror Contacts for “Safety-Related” Applications
• Mechanically linked Auxiliary Contacts
Features Include:
Control voltage: 400-415V 50Hz/480V 60Hz
Rated current In - AC-3 (Ue ≤ 440 V): 50 A
Main contact: 3 NO
Rated operational voltage Ue - IEC 60947-4-1: 1000 V
Rated operational voltage Ue - UL/CSA: 600 V
Height: 116.5 mm (4.59 in)
Width: 66 mm (2.60 in)
Depth: 116 mm (4.57 in)
Panel mountable or 35mm DIN Rail up to the CWM105 Series
