CWM50-00-30V18
Alt: 10045551
$96.75

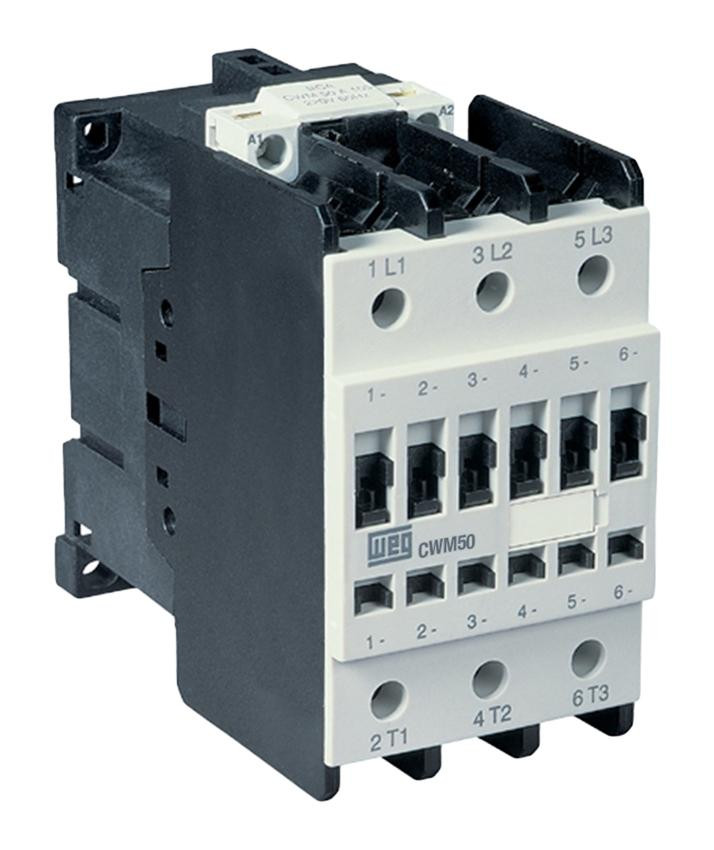

Contactor, IEC, 50 Amps, 120VAC, 3-Pole, UL508, Use RW Overload Relay
- Weight:
- 2.60 LBS
- Minimum Purchase:
- 1 unit
Description
Features Include:
- Control voltage: 110V 50Hz/120V 60Hz
- Rated current In - AC-3 (Ue ≤ 440 V): 50 A
- Main contact: 3 NO
- Rated operational voltage Ue - IEC 60947-4-1: 1000 V
- Rated operational voltage Ue - UL/CSA: 600 V
- Height: 116.5 mm (4.59 in)
- Width: 66 mm (2.60 in)
- Depth: 116 mm (4.57 in)
- Panel mountable or 35mm DIN Rail up to the CWM105 Series
- Front and Side Mounting Auxiliary Contacts
- Finger-Touch IP20 Protection
- Wide Coil Voltage Protection AC or DC
- Mirror Contacts for “Safety-Related” Applications
- Mechanically linked Auxiliary Contacts
Technical Information:
- Weg CWM50-00-30V18 Datasheet
- Weg CWM Series Contactors Flyer
- Weg CWM Series Contactors Technical Data
- Weg CWM Series Contactors Brochure
- Weg Controls Reference Codes Catalog
- Weg Automation Drives & Controls Catalog
- Weg Low Voltage Switch & Control Gear Catalog
- Weg Power and Control Products Catalog
Installation Guides:
- Weg CWM9 - CWM105 Contactor Installation Manual
- Weg CWM400/500/630/800 Contactor Installation Manual
- Weg CWM9 - CWM105 BCA/BCC Installation Manual
- Weg BLIM.02/BLIM9-105 Installation Manual
- Weg CWM500-800 BLIM Installation Manual
- Weg CWM9 - CWM105 JC Installation Manual
- Weg CWM EC-SD Installation Manual
Learn more about Contactors, Starters & Overload Relays here!
